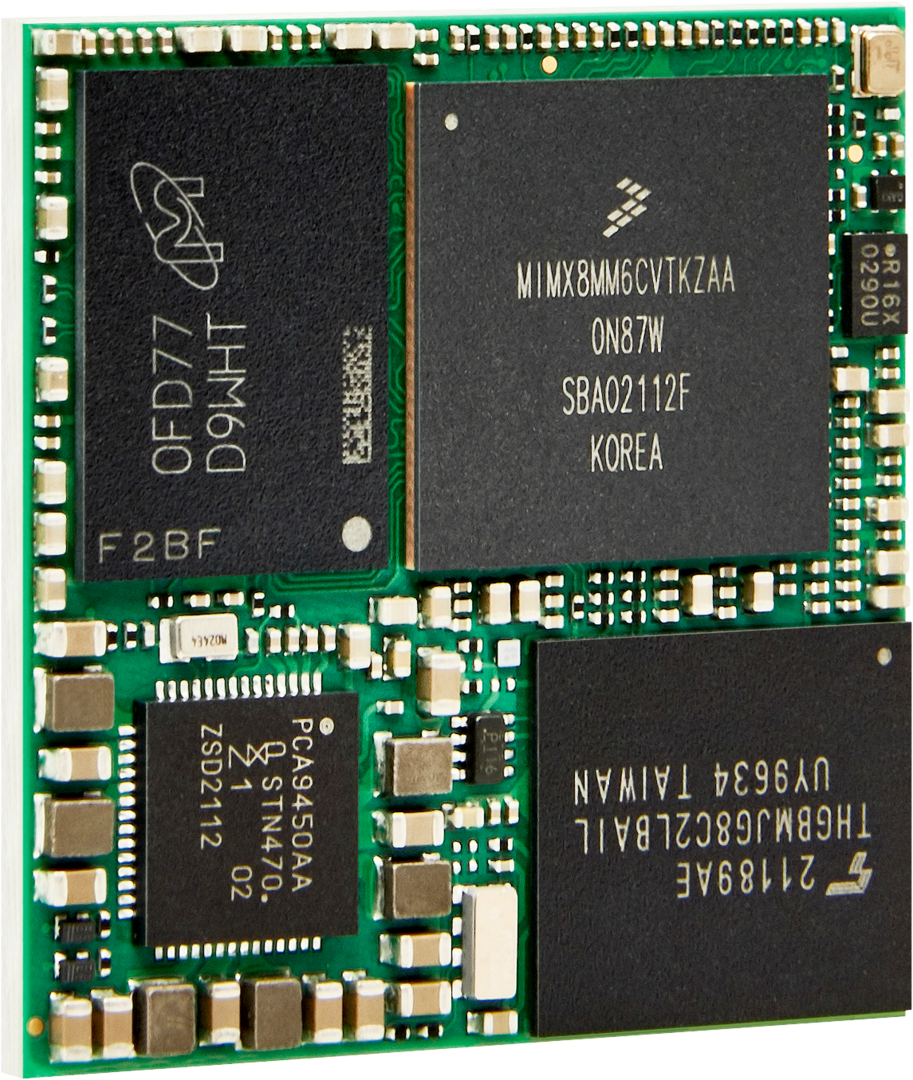

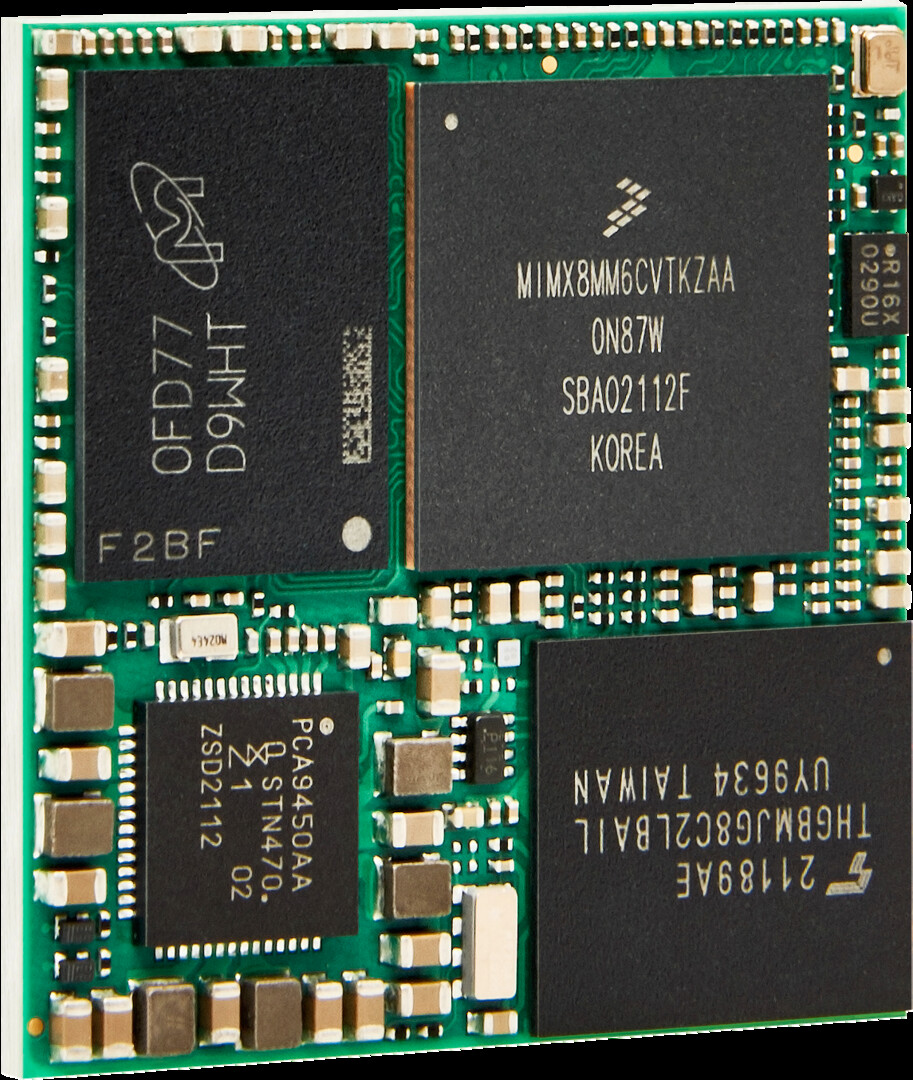

SOM-OSM-S i.MX8M Mini
Open Standard Module™ (OSM) Form Factor Size S, Quad Core with 1.6 GHz, eMMC and LPDDR4 Memory on just 30 mm x 30 mm
Specifications
- 4x Arm® Cortex®-A53 @1.6 GHz and 1x Arm® Cortex-M4 @400 MHz, 2D GPU, 3D GPU
- LPDDR4-RAM 1 GByte up to 4 GByte, NOR-Flash 2 MByte, eMMC 4 GByte up to 64 GByte
- Ethernet, USB, I/O, LCD interface, Camera interface
- Operating system Embedded Linux (Yocto Distribution)
The new system-on-module OSM-S i.MX8M Mini is powerful, compact and affordable; it combines all the advantages of the Open Standard Module™ specification in minimum space. It offers high performance for sophisticated computing-intensive applications, 3D visualization and a wide range of communication applications. With it numerous digital I/Os and serial communication interfaces as well as PWM and SDIO interfaces, the module is perfect for industrial applications. Its latest processor (4x Arm® Cortex®A53, 1x Arm® Cortex® M4) and memory technology (LPDDR4) make it easy and quick to be used for custom board and application developments. The Arm® based CPUs are RISC (reduced instruction set computer) processors. These are particularly suitable for cost-sensitive embedded applications with high energy efficiency combined with high computing and graphics performance.
The OSM standard offers several additional specific advantages. In addition to manufacturer-independence, it includes easy and affordable embedded application development with custom board design, minimized design risk, and shortened time-to-market.
Power is supplied via a 5V DC connection. The application range lies between -25°C and +85°C.
Features
| CPU | NXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte Options: 1 GByte, 2 GByte |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte Options: 4 GByte up to 64 GByte |
| EEPROM | 8 kB (64 kb) Options: on request |
| Ethernet | 1x 1 Gbit/s (RG MII) |
| USB | 2x 2.0 OTG |
| I/Os | 4x UART, 2x I²C, 2x SPI, 24x GPIO, 3x PWM, 1x PCIe, 1x SAI, 2x SDIO (1x 4-bit, 1x 8-bit) |
| LCD INTERFACE | 1x MIPI DSI (4-lane), up to 1920 x 1080 @60 fps |
| Camera Interface | 1x MIPI CSI (4-lane) |
| Power Supply | 5 V DC ±5 % |
| IO Voltage | 1.8 V Option: 3.3 V |
| Power Consumption | Linux running < 1 W, max. < 3.5 W |
| Temperature range | -25 °C ... +85 °C |
| RTC (I²C) | 45 nA / 1ppm @25 °C |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 30 x 30 mm OSM Size-S |
| Footprint | 332 Pin / RM 1.25 mm |
| Security | HAB Secure Boot, TrustZone, TRNG, RSA bis zu 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA bis zu 256, ECC, Secure JTAG |
