/ XMC-ETH6

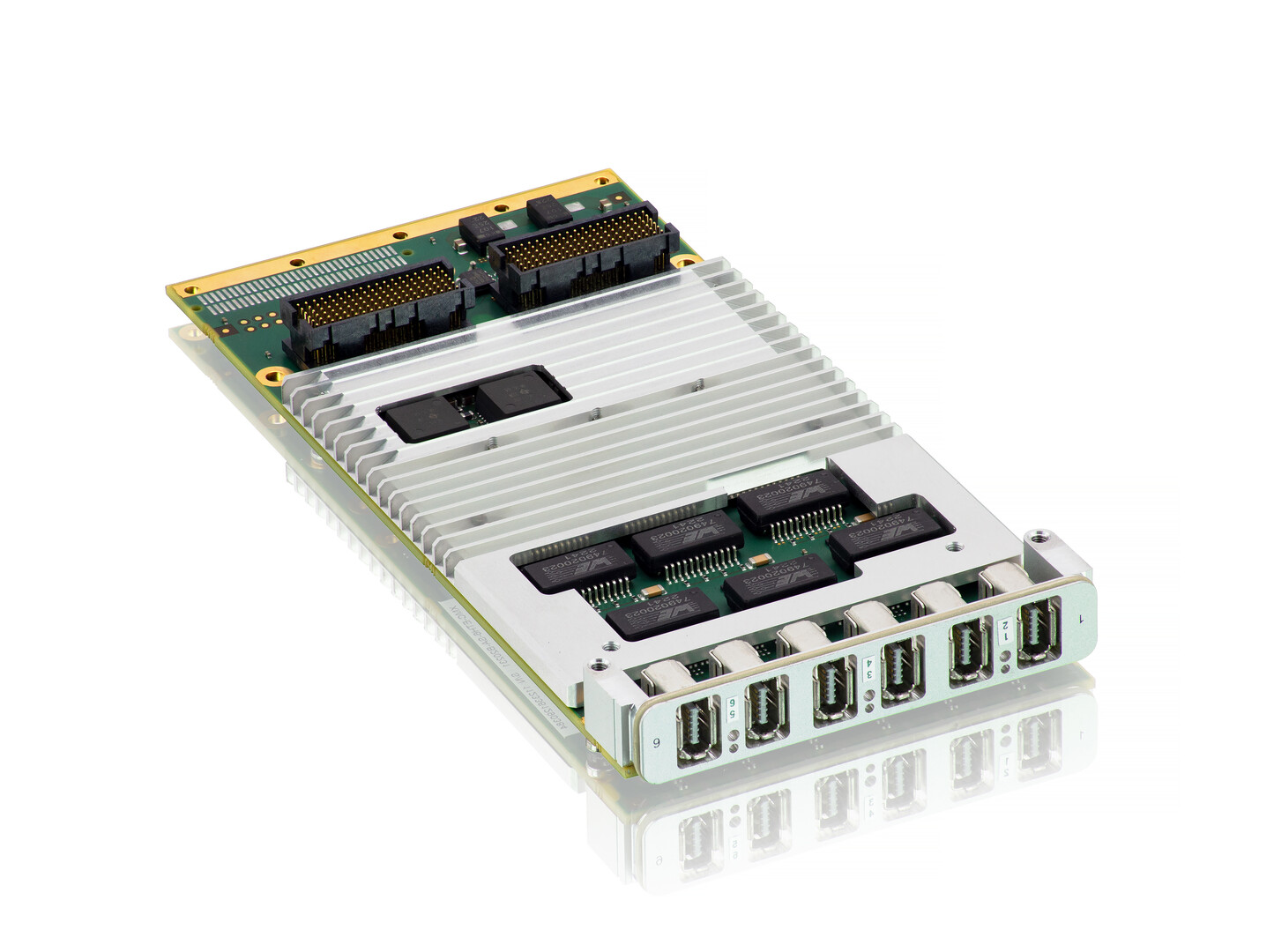

XMC-ETH6 New
Six ports 1G/2.5G Ethernet Mezzanine Card
Specifications
- Six independent Ethernet controllers
- Four 1G / 2.5G i225 controllers supporting TSN/IEEE1388 PTP
- Robust, High EMC resistance IEC 61076 standard Harting ix front connectors
- XMC VITA42 and VITA61 build options
- Air-cooled and Rugged conduction-cooled versions
Expand the network capability of any VME or VPX plug-in card with Kontron's XMC-ETH6, a six ports high-performance Gigabit Ethernet XMC.
XMC-ETH6 provides four independent 1G/2.5G ports as well as two 1G copper ports.
Its 8 ports 8 lanes PCIe Gen3 switch allows multiple configurations, using up to four Intel i225 supporting TSN/IEEE1388 PTP and up to two Intel i210 Ethernet controllers featuring a maximum of six simultaneous 1000BASE-T ports.
The air-cooled version comes with front Ethernet connectors complying to the IEC IX Ethernet industrial standard with easy locking, enhanced robustness and improved level of EMC resistance.
The rugged conduction-cooled version makes it fit for demanding environments such as defense and transportation applications.
A 3U VPX version of this board featuring the sames interfaces is available on demand. Please contact our team at sales.KFR@kontron.com
