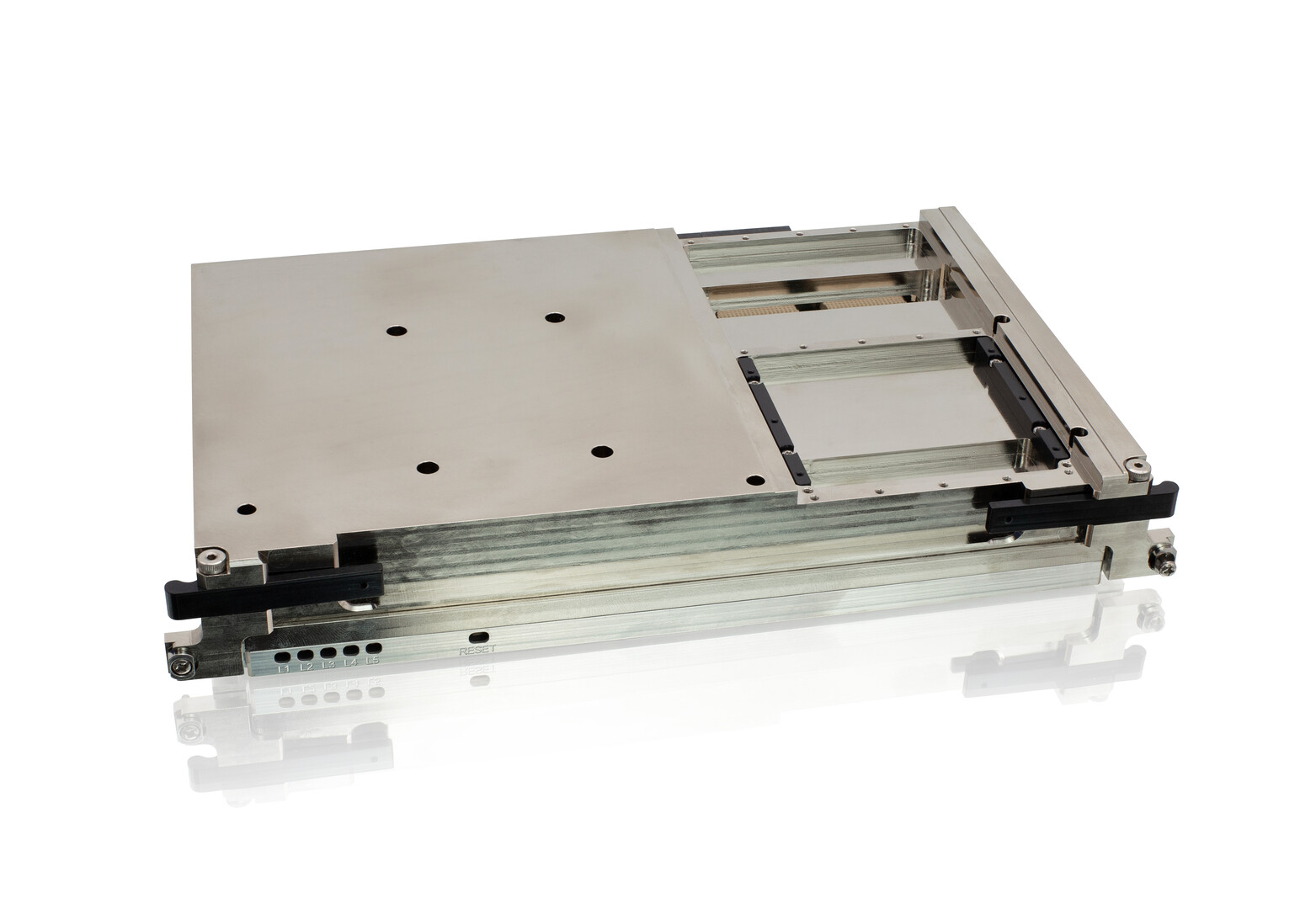

VX6096 New
SOSA-aligned 6U VPX Intel® Xeon® D-2700/2800 Plug-in Card
Specifications
- Intel® Xeon® D-2700/2800 processors with 100G Integrated Ethernet
- Up to 128 GByte DDR4 memory with ECC
- XMC/MXM Mezzanine slots
- Air-Flow Through cooling technology
- Designed in accordance with SOSA™ standard
Designed for imaging, radar and embedded server applications
VX6096 can handle very high data processing capabilities with the Intel Xeon-D2700/2800 in 16- and 20-core versions and increased network capabilities with the support of 100G Ethernet. A GPU board can enhance graphics and compute capabilities thanks to the XMC or MXM expansion slots. Its advanced Air-flow through cooling technology (VITA48.8) significantly improves power dissipation making it fit for demanding environmental constraints. Hardware security features such as TPM2, a secure PLD and software techniques such as measured and secure boots, guarantee the integrity of all the firmware images loaded before any code is executed thus protecting the board from cyber-attacks.
VX6096 is a perfect fit for compute intensive applications in all military radar segments, such as Airborne mapping, navigation, surveillance & airborne early warning radars, long distance tracking and target localization.
Features
| CPU | Intel® Xeon®-D2775TE, 16-core/32 threads, 100W TDP or Intel® Xeon®-D2896TER, 20-core/40 threads, 110W TDP |
| Cache | 25Mbyte or 30Mbyte |
| DRAM DDR4 | 64-128 GByte quad channel DDR4 SDRAM with ECC |
| Expansion Slots | XMC or MXM |
| Backplanes | SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2 |
| I/Os | Data plane: Dual 40/100GBASE-KR4 ports Expansion plane: x16 PCIe Gen4 Control planes: Dual 10GBASE-KR + dual 1000BASE-T ports x4 PCIe Gen3 / SATAIII for storage DP++ 1.2 Graphic port Dual USB2.0 ports Dual USB3.0 ports Dual serial lines 8 GPIOs XMCIOs Dual SMB/IPMB, JTAG, Power Supplies |
