/ VX6011-S

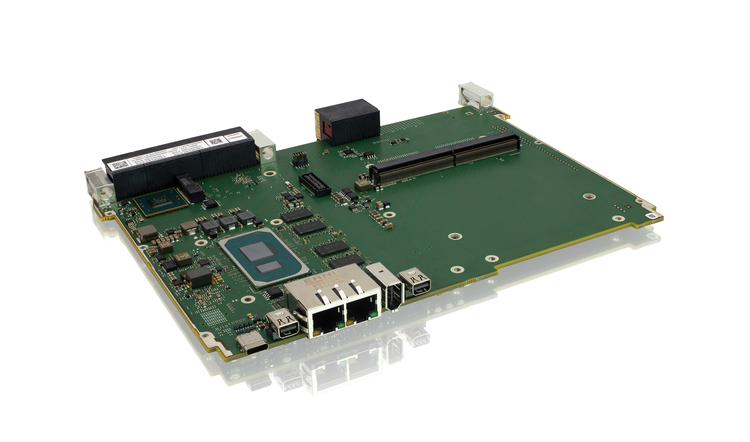

VX6011-S
SOSA-aligned 11th Generation Intel Core Processor 6U VPX SBC
Specifications
Coming soon- 11th Gen Intel® Core™ processor for AI (Artificial Intelligence), CVGIP (Computer Vision, Graphics, and Image Processing), DSP (Digital Signal Processing) workloads
- 12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC
- 8k Multi-Head display from Gen12 / 96 EUs high End GPU
- Versatile I/O: USB-C, M.2 sockets, XMC option
- 1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability
- 15-year availability, PBIT, CBIT, SEC-Line support
Developed in alignment with the SOSA™ Technical Standard.
The 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases.
The VX6011-S has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available.
The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications.
The VX6011-S pin assignment is compatible with VITA65 OpenVPX Profiles SLT6-PAY-
4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 and can be considered for system architectures developed in alignment with the SOSA™ Technical Standard.
Downloads
技术参数
VX6011-S datasheet
[ vx6011-s_datasheet_1.pdf, 992.52 KB, Apr.04.2024 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
