VX3940 New
High End L2/L3 10G/40G/50G Ethernet Switch
Specifications
- High End L2/L3 switch Developped in alignment with the SOSA™ Technical Standard
- 3U Open VPX MOD3-SWH-6F1U7U/ MOD3-SWH-6F8U7 profiles
- Line Rate sustained for all packet sizes
- Air-Cooled - QSFP28 4x25G or 2x50G Ethernet
- Conduction-Cooled : Backplane 32x10G Base-KR or 8x40G Base-KR4
- Low Power for harsh environments

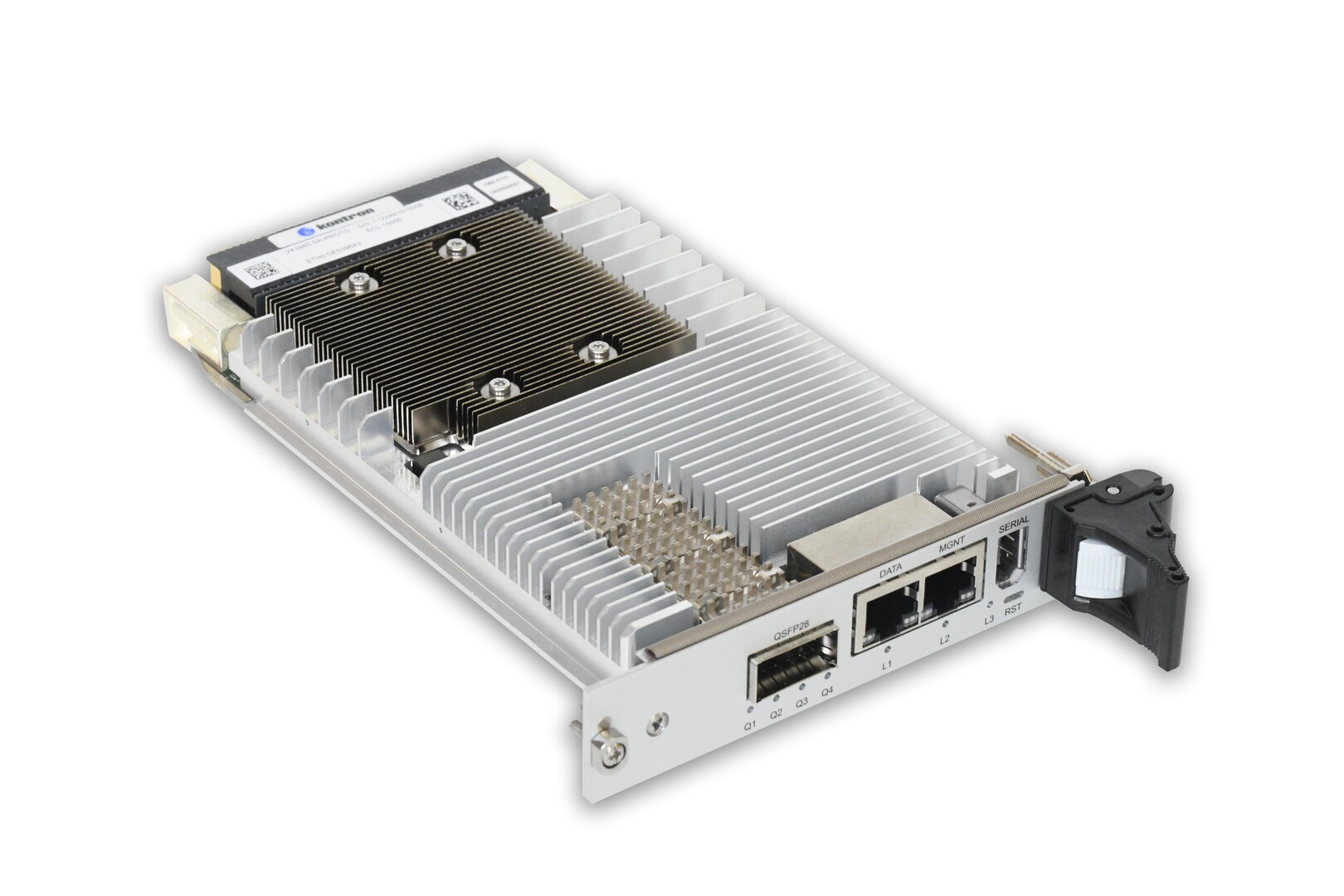

The VX3940 is a 3U VPX Fully Managed L2/L3, 1/10/40/50 Gigabit Ethernet Switch. It is designed in alignment with the SOSA™ Technical Standard, as well as being compatible to a wide range of OpenVPX profiles and includes up to 32x 10GigE or 8x 40GigE ports (or combination of the two). Furthermore, 4x of the 10GbE can be configured as 25GbE or 2x 50GbE links. The VX3940 is designed for long-term programs and harsh environments, for applications requiring outstanding bandwidth and communication safety.
Features
| Ethernet | Air-Cooled: Front Panel: 1G Base-T + QSFP28 supporting 4x25G or 2x50G Backplane: 6x40G Base-KR and 4x10G Base-KR or 28x10G Base-KR |
| Ethernet | Conduction-Cooled: Backplane: 6x40G Base-KR and 8x10G Base-KR or 32x10G Base-KR |
| Controller | IPMI controller |
| Power Supply | 12VDC |
Downloads
技术参数
VX3940 Datasheet
[ vx3940_datasheet.pdf, 1.82 MB, Jun.02.2023 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
