VX3908 New
10G/40G/50G Ethernet L2/L3 Network Switch
Specifications
- VITA65 OpenVPX L2/L3 switch for harsh environments
- Line Rate sustained for all packet size
- Dual 50G Ethernet uplinks
- Air-cooled builds

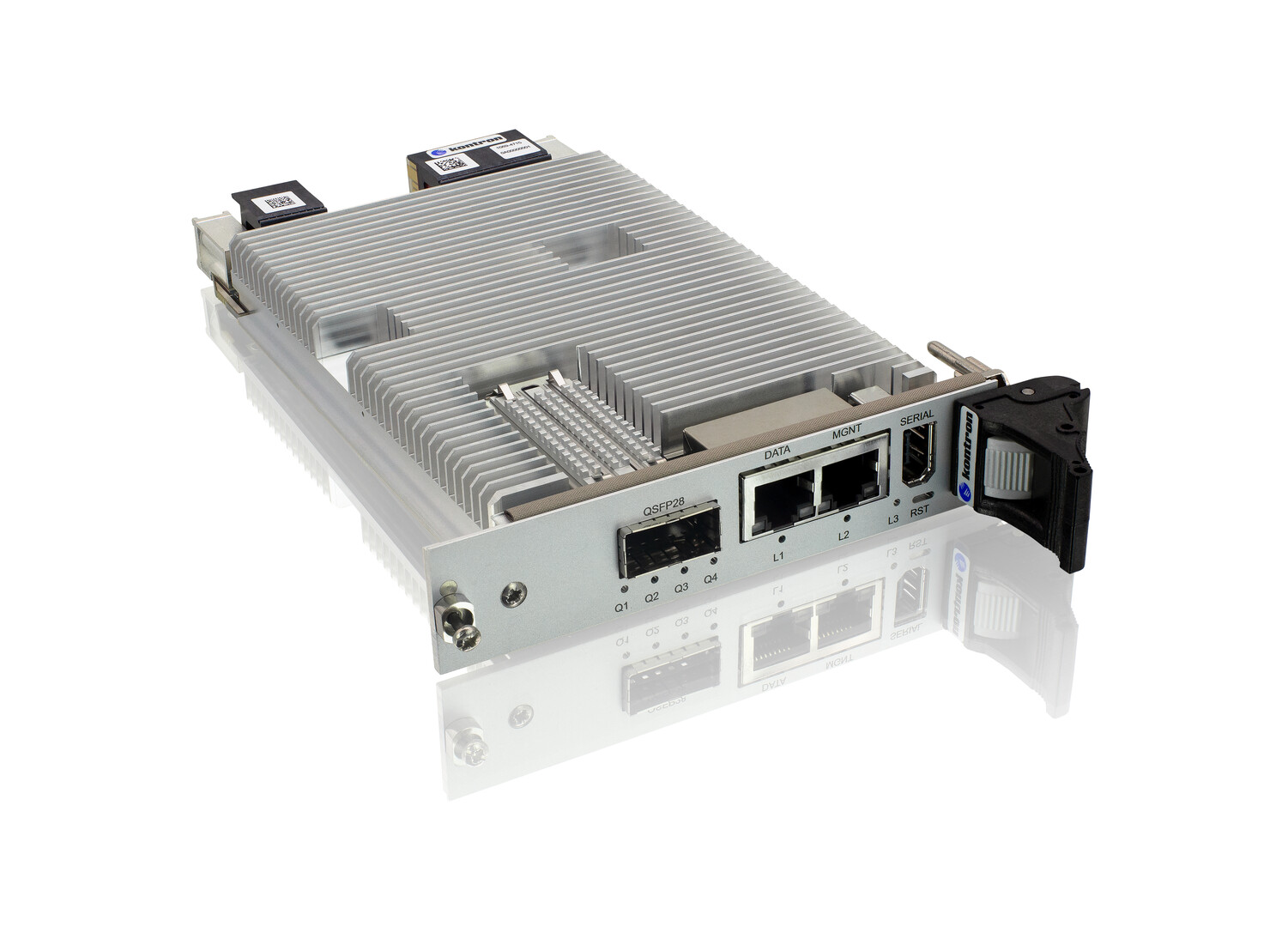

Kontron's VX3908 is a robust, fully managed layer 2&3 switch with 1/10/40/50 Gigabit Ethernet capabilities. Engineered for durability in harsh environments, it offers outstanding bandwidth and communication safety, ideal for long-term programs.
Aligned with VITA65 OpenVPX profile, it supports up to 12x 10GBASE-KR ports on the VPX backplane, with additional configurations enabling aggregated 10GbE ports forming higher bandwidth outputs.
With extensive management capabilities via SNMP, command line interfaces, and IPMI v1.5, it allows for comprehensive monitoring and remote configuration. Its feature set encompasses IPv4/IPv6 forwarding, routing, VLANs, QoS, spanning tree protocols, and Ethernet bridging and routing protocols.
The VX3908's enhanced features include egress ACLs, intelligent health management via IPMC, and an additional powerful CPU from QorIQ® LayerScape family, ensuring high performance for management systems and future scalability.
Features
| Ethernet | 1/10/40/50 Gigabit Ethernet |
| GbE Switch Features | Up to 12x 10GBASE-KR ports can be supported on the VPX backplane (standard configuration will offer 6x 10GBASE-KR + 1x 1000BASE-T ports). |
| CPU | ARM LS1020A QorIQ® LayerScape |
| Standard | OpenVPX VITA65 |
| Form Factor | VPX |
| Cooling | Air-Cooled (0°C to 55°C) |
| IPMI | VITA 46.11 |
| Frontpanel | 1x QSFP28 cage, 2x RJ45 connectors (with management port) and 1x Serial Line |
Downloads
技术参数
VX3908 Datasheet
[ vx3908_datasheet.pdf, 783.72 KB, Dec.14.2023 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
