SoM OSM-S i.MX93 New

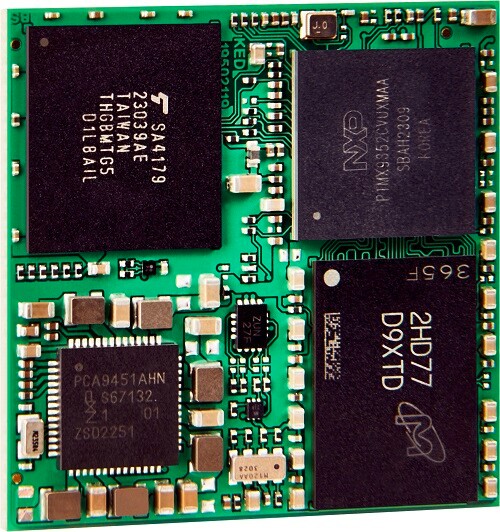

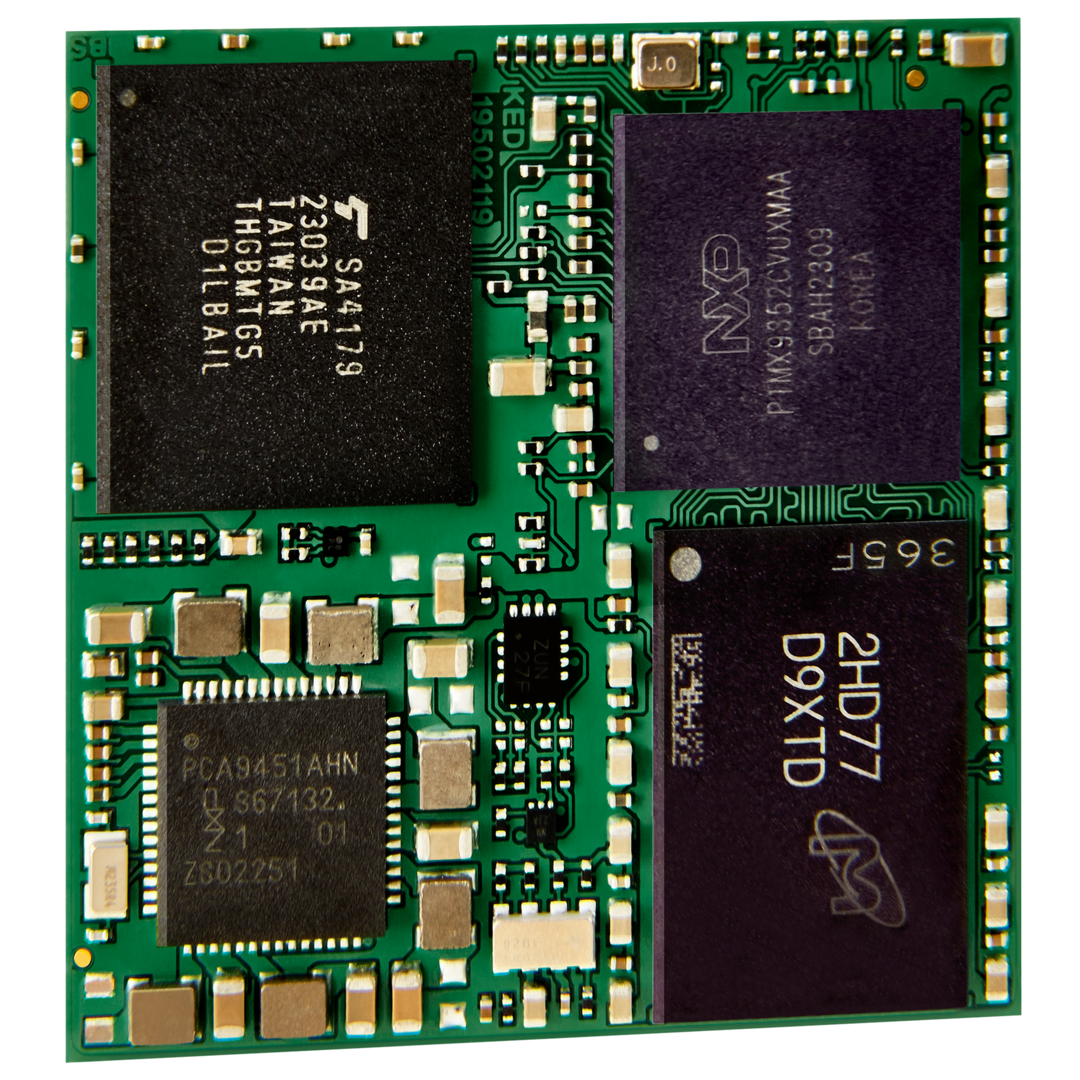

SoM OSM-S i.MX93
Specifications
- 2x Arm® Cortex®-A55 @1.7 GHz
- 1x Arm® Cortex®-M33 @250 MHz
- 1x Arm® Ethos™ U-65 microNPU
- OSM-Form factor Size-S 30 mm x 30 mm
The SoM combines cost effectiveness and energy efficiency as well as connectivity on 30 mm x 30 mm
Features
| CPU | NXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz, 1x Arm® Cortex®-M33 @250 MHz, 1x Arm® EthosTM U-65 microNPU |
| LPDDR4-RAM | 1 GByte, optional 512 MByte up to 2 GByte |
| eMMC | 4 GByte, optional 8 GByte up to 64 GByte |
| EEPROM | 8 kB optional |
| Ethernet | 2x 1 Gbit/s IEEE 1588 (1x with TSN) |
| USB | 2x USB 2.0 OTG |
| I/Os | 4x UART, 2x I²C, 2x SPI, 10x GPIO, 3x PWM, 1x SAI, 2x SDIO (4-bit), 2x ADC |
| CAN | 2x CAN FD |
| LCD Interface | 1x MIPI DSI (4-lane) up to 1920 x 1200 @60fps, 1x LVDS (4-lane) bis zu 1366 x 768 @60fps |
| Camera Interface | 1x MIPI CSI (2-lane) |
| Power Supply | 5 V DC ±5 % |
| IO Voltage | 1,8 V |
| Power Consumption | TBD |
| Temperature range | -25 °C ... +85 °C |
| RTC (I²C) | As an option |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 30 x 30 mm OSM Size S |
| Footprint | 332 Pin / 1,25 mm pitch |
| Safety | EdgeLock® Secure Enclave |
