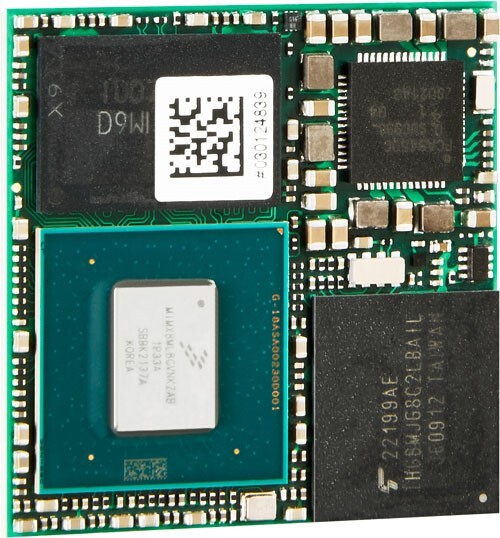

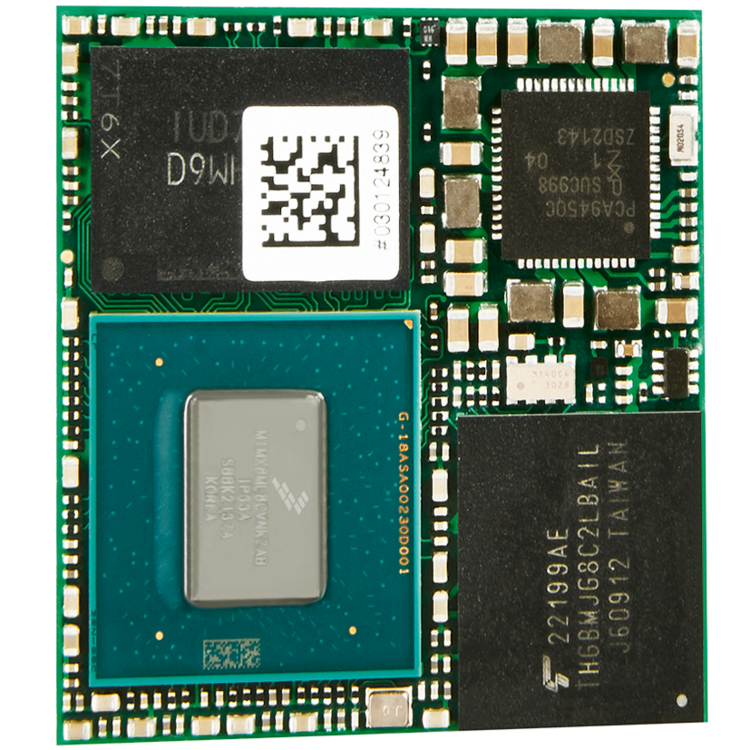

SOM-OSM-S i.MX8M Plus
SOM-OSM-S i.MX8M Plus
Specifications
- 4x Arm® Cortex®-A53 @1,6 GHz
- 2x GbE-Lan and TSN functionality
- 2x CAN FD
- OSM form factor size S 30 mm x 30 mm
Features
| CPU | 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M7 @800 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte, optional 1 GByte, 2 GByte |
| eMMC | 32 GByte, optional 4 GByte up to 64 GByte |
| EEPROM | 8 kb, optional up to 128 kb |
| Ethernet | 2x 1 Gbit/s IEEE 1588 (1x with TSN) |
| USB | 2x USB 3.0 |
| I/Os | 4x UART, 2x I²C, 2x SPI, 17x GPIO, 3x PWM, 1x PCIe, 1x SAI, 2x SDIO (1x 4-bit, 1x 8-bit) |
| CAN | 2x CAN FD |
| LCD Interface | 1x LVDS, 1x HDMI, 1x MIPI DSI up to 4k @30fps |
| Camera Interface | 2x MIPI CSI (4-lane) |
| Power Supply | 5 V DC ±5 % |
| IO Voltage | 1.8 V, optional 3.3 V |
| Power Consumption | Linux running < 1 W |
| Temperature range | -25 °C ... +85 °C |
| RTC (I²C) | 45 nA/1ppm @25 °C |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 30 x 30 mm OSM size S |
| Footprint | 332 Pin/1.25 mm pitch |
| Safety | HAB Secure Boot, TrustZone, TRNG, RSA up to 4096, AES- 128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG |
