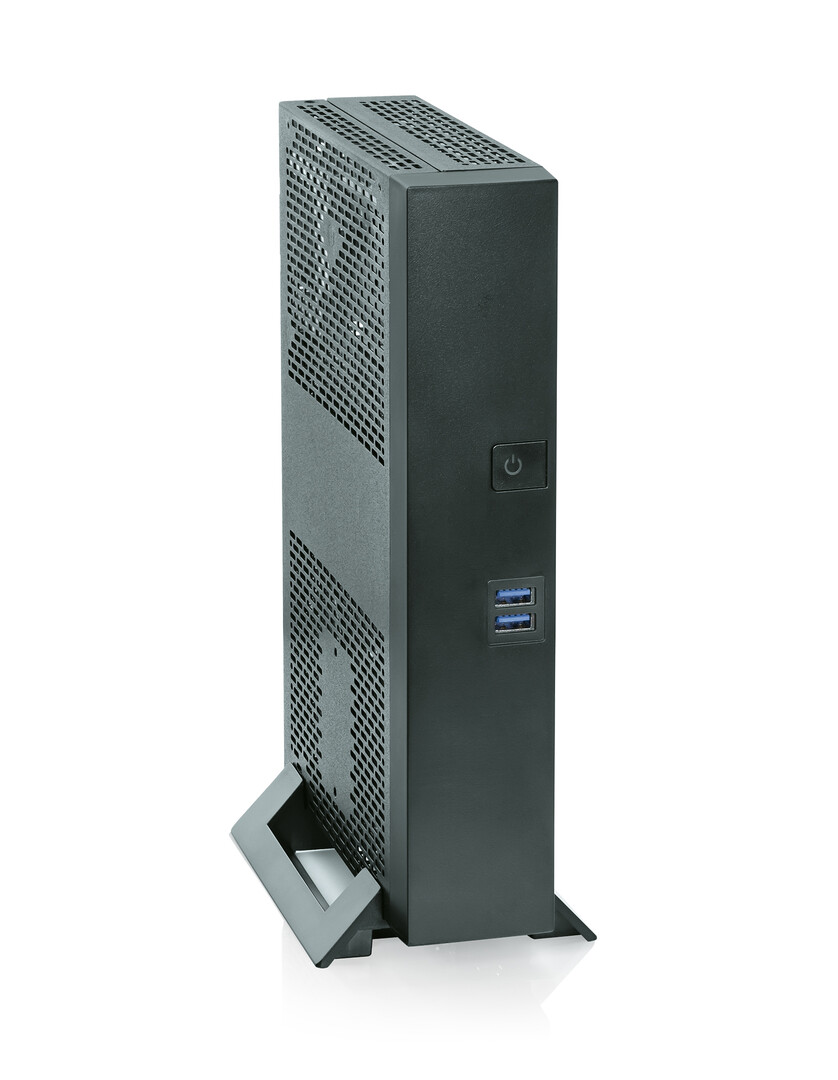

SMARTCASE™ S720

Chassis Kit Solution for D363x-S mITX

Mouseover Zoom loading...

Specifications

Compact Design (250 x 52 x 191 mm)
Dual Front USB 3.1 Connectors (available from Q4/2021)
Low Profile Extension Slot
Option for Internal 65W PSU Module
Horizontal and Vertical Stand plus Wall Mount Bracket

Download Datasheet

The SMARTCASE™ S720 can be equipped with four motherboards: the Kontron D3433-S mITX, the D3434-S mITX, and the Kontron D3633-S mITX and D3634-S mITX. The boards can be equipped with Intel® Core™ i CPUs of the 6th, 7th, 8th and 9th generation. Thanks to a low profile slot for PCIe expansion cards and a 2.5" drive bay, the system can be expanded despite its compact design. The S720 can be used in horizontal and vertical mode.

Downloads

技术参数

Datasheet SMARTCASE S720
[ ds_smartcase_s720_frontusb.pdf, 1.5 MB, Apr.22.2022 ]

参考手册

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

白皮书

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Active Cooler LGA1151 S26361-F5000-C011		Low-rise active cooler suitable for D3674-B and SMARTCASE™ S720 chassis
Internal PSU for chassis Kit S26361-F5000-P004		AC Adapter, 12V / 5.4A, 65W, low profile extension card format
COM Cable "long" S26361-F5000-K010	$COM Cable \$	with fullsize slot bracket
Risercard S26361-F5000-R006		1 x PCIe x4
Mini-PCIe to M.2 2230 Converter for WLAN/BT S26361-F5000-M003		all Boards with fullsize Mini-PCIe socket
