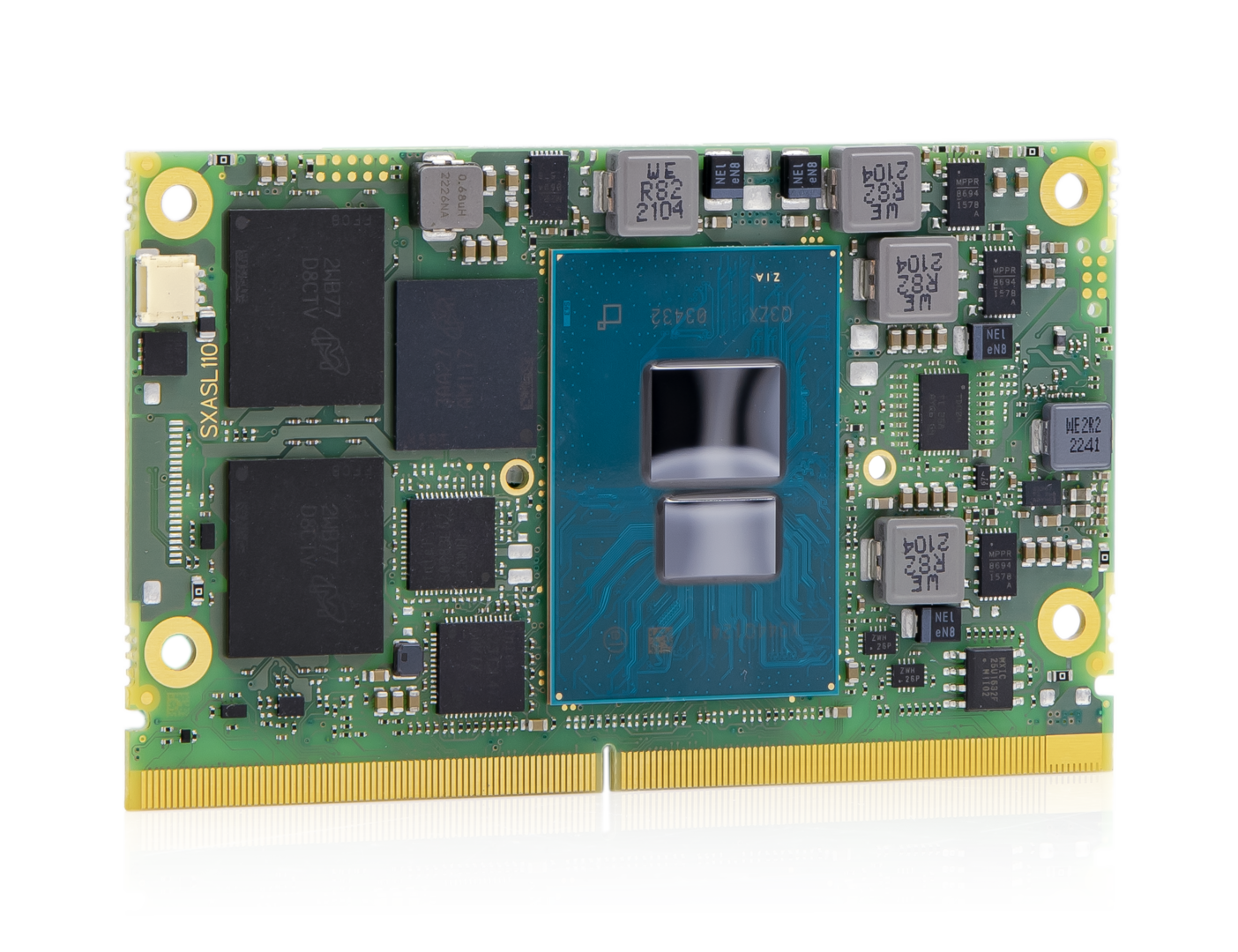

SMARC-sXAS
SMARC 2.1 module based on Intel Atom® x7000E, x7000RE Series
Specifications
Coming soon- Up to 32 GByte LPDDR5 memory down with inband ECC support
- Dual LVDS, HDMI, DP++
- 1x USB 3.2, 6x USB 2.0, eMMC onboard
- Industrial grade temperature
The SMARC-sXAS supports the broad scalability of the new Intel Atom® series x7000E/x7000RE, Intel® Processor N Series, and Intel® Core™ i3-N305 processor designed for IoT applications. The range extends from the cost-optimized 2-core to high-performance 8-core Intel® Core™ i3 solution with up to 3.8 GHz burst frequency.
The SMARC-sXAS is particularly suitable for applications requiring low height. It offers up to 32 Gigabyte of LPDDR5-4800 memory down, two USB 3.2 Gen2 and four USB 2.0 interfaces, one SATA port, eMMC on-board, two 1GBASE-T (alternatively 2.5GBASE-T) Ethernet ports with TSN.
Features
| Compliance | SMARC™ module 2.1.1 |
| Dimensions (H x W x D) | 82 x 50 mm |
| CPU | Intel Amston Lake SKUs – Industrial RE-Series |
| Main Memory | Up to 32 GByte LPDDR5 memory down with inband ECC support |
| Graphics Controller | Gen 12 IGFX |
| Ethernet | Up to 2.5GbE |
| Ethernet | 10 / 100 / 1000 MBit Ethernet |
| Storage | 1x SATA 6Gb/s |
| Flash Onboard | up to 128 GByte eMMC (MLC) |
| PCI Express / PCI support | up to 4x PCIe x1 |
| Panel signal | 1x HDMI (on request DP++), 1x DP++, 1x Dual LVDS (on request eDP) |
| USB | 1x USB 3.2, 6x USB 2.0 |
| Serial | 4x UART ( 2x RX/TX only) |
| Other Features | HD Audio, I²C, 2x SPI, 14x GPIOs |
| Special Features | Trusted Platform Module TPM 2.0 Industrial Temperature Grade versions |
| Features on Request | eMMC: up to 64 GByte pSLC RAM: from 2 GByte to 32 GByte LPDDR5 MIPI CSI, CAN |
| BIOS | AMI UEFI |
| Operating System | Windows® 10 (IOT) Enterprise x64, Windows® 11, Linux |
| Power Supply | 5V only! No Widerange |
| Temperature | Industrial grade: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
