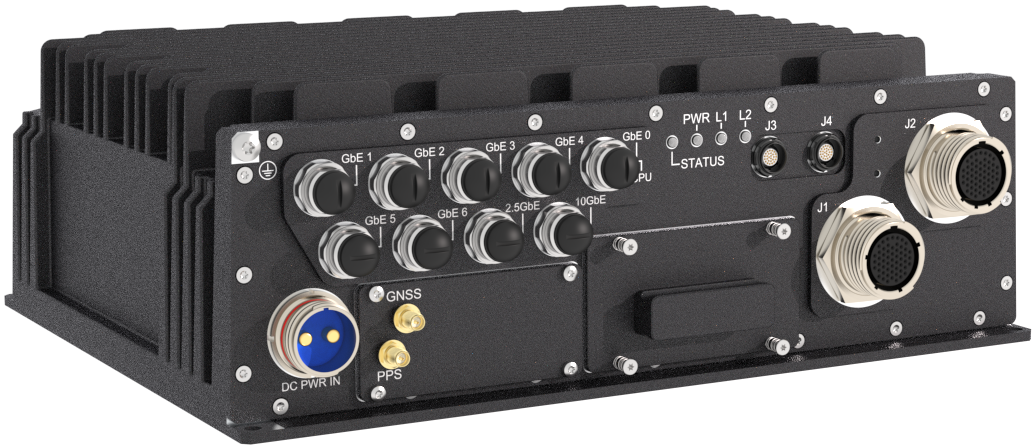

S1901 COBALT™
Rugged High Performance Mission Computing Platform
Specifications
- ComExpress Intel® High Performance Processor
- Expansion slots for multiple GPU, FPGA accelerators, or video modules
- Multiple I/O high speed interfaces and high capacity storage options
- Wireless connectivity options for cellular and wifi
- Ruggedized & modular platform ideal for defense deployments
The S1901 COBALT™ Mission Computing Platform features the latest in Intel high performance processor and is designed to meet the future needs of Defense computing platforms for AI, Deep Leaning and HPEC by providing multiple GPU or Accelerator card options. The compact S1901 is designed for various high speed I/O options such as 10GbE (copper, but fiber is an option), USB 2/3.0, ruggedized connectors for GPS and 1 PPS timing signals, and room for customization options such as Camera Interfaces. Storage capacities are met using M.2 NVME slots, along with high capacity 2.5" SSD slots (fixed or removable). Standard options include WiFi and/or LTE cellular modem, and MIL-STD-1553, CANBus, auxiliary cooling fan assembly, and a safety processor module for autonomous vehicle applications.
Features
| Dimensions (H x W x D) | 13.0”W x 7.0”D x 4”H |
| Processor | COMe-bBL6 (Broadwell) with 32GB of RAM (64 GB available) Other processors such as COMe-bDV7 (Denverton), COMe-bKL6 (Kabylake), or COMe-bSL6 (Skylake) available |
| PCI Express / PCI support | 2x M.2 with x4 PCIe 1x M.2 with x1 PCIe and USB 3.0 2x mPCIe with x1 PCIe and USB 2 |
| Ethernet | 1x 10GBASE-T (Switched) 1x 2.5GBASE-T (Switched) 5x 1000BASE-T (Switched) 1x 1000BASE-T (Direct to CPU) |
| USB | Front Panel: 2x USB 2, 2x USB 3.0 |
| Serial | Front Panel: 2x RS232 (tx/rx) 2x [RS232 (rx/tx/cts/rts) or RS485/422] |
| Interface | Dual Display Port |
| Audio | 2 Balanced Audio In 2 Balanced Audio Out |
| Special Features | GPS and 1 PPS input/output 6x GPI, 4x GPO, 6 x GPIO 4x CANBus (Option) Safety Processor (Option) IEEE 802.3-2012 Power-over-Ethernet (Option) 2x 2.5" removable Solid State Drive bays (SSDs sold separately) |
| Wireless connectivity | (Option) Cellular (M.2) connectivity | WiFi (mPCIe) connectivity |
| Power Consumption | +28 VDC (+18 VDC to +36 VDC) power input Power Consumption: up to 350W (configuration dependent) |
| Cooling | Passive air/conduction cooled. Auxiliary IP67 fan kit available as a build option. |
| Operating System | Linux Ubuntu 20.04, LTS, 64-Bit (installed). Other operating systems available on demand. |
