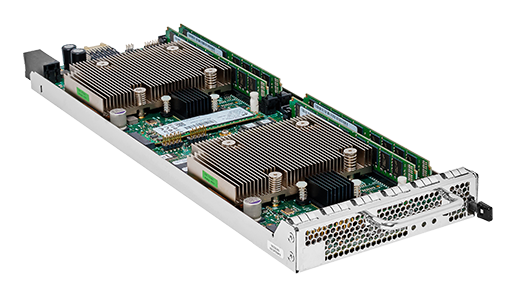

MSP8022 MODULAR SERVER
For cost-efficient, high performance transcoding of SD and HD video workloads
Specifications
- Dual Intel® E3-1278Lv4 4C8T + GT3e
- 32GB DDR3 ECC VLP SDRAM per CPU
- 4x GbE (2 per CPU)
- One M.2 SSD up to 480GB per CPU
- IPMI v2.0, IPMI over LAN
- Managed Life Support (5-7 years)
Video delivery for service providers, digital broadcasters, and content delivery network (CDN) providers is a continual challenge to scale networks and to stay ahead of the growing volume of multimedia traffic.
The Kontron MS2900 Series of converged platforms are the ideal hardware solution to achieve the highest density of video stream workloads – SD, HD, 4K – aggregated into a single 2U, short-depth platform. Supporting up to nine (9) modular servers, network operators can achieve magnitudes more in operational savings and increased revenue per Watt.
For cost-efficient, high performance transcoding of SD and HD video workloads, the MSP8022 modular server solves many high-density requirements for live streaming and VoD services.
As a single node featuring two independent servers, a fully populated MS2900 platform using none MS8022 nodes translates into 18 Intel CPU/GPU servers to perform up to 10x more transcode processing than standard commodity appliances.
Downloads
参考手册
MS29xx Product Documentation Package
All-in-one platform documentation package, contains the following :
MS2900 First Startup Guide v1.1
The First Startup Guide will assist you with getting up and running on your SYMKLOUD MS2900 Platform.
PLATFORM
- MS2900 Platform Quick Start Guide, v1.2
- MS2900 Platform User Guide, v1.5
- MS1300 Platform User Guide, v1.0 ~NEW~ 01-2019
HUB modules
- MSH8900 User Guide, v1.2
- MSH8910 Series User_Guide, 1.0
- MSH891x CLI Reference Guide, v1.5
- MSH8920 Series User Guide, 1.0
- MSH8920 PicOS routing and switching configuration guide, v1.0
- MSH8920 PicOS routing and switching commands reference guide, v1.0
- MSU8700 (Uplink Module) Quick Reference Sheet, v1.1
PROCESSOR nodes
- MSP800x Series User Guide, v1.0
- MSP802x Series User Guide, v1.1
- MSP804x Series User Guide, v1.2
- MSP8050 Series User Guide, v1.1
- MSP8060 Series User Guide, v1.0
SYSTEM MANAGER
- System Monitor User Guide, v3Rev1
- System Monitor API Programmer's Guide, v3Rev2
APPLICATION NOTES
- MSP802x KVM Configuration, v2.0. (AN14006)
- MSH8900 SFP modules, v1.0. (AN14005)
- MSH8910 compatibility guide, v1.0
- MS2910-Startup_use-case_VLAN-segregated_Mgmt+payload_networks (AN17002)
- MS2910-Startup_use-case_physically_isolated_Mgmt+payload_networks (AN17003)
- MS2910-Startup_use-case_common Mgmt+payload_network (AN17004)
- MS2900-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18001)
- MS2900-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18002)
- MS2900-Startup_use-case_VLAN-segregated_Mgmt+payload_networks, v1.0 (AN18003)
- MS2920-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18004)
- MS2920-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18005)
[ symkloud_product_documentation_package-2019_01.zip, 60.15 MB, Jan.28.2019 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
