K3921-N mSTX New
Industrial Motherboard supporting the Intel® Core™ i3 processors & Intel® processors N series
Mouseover Zoom loading...
Specifications
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
- Designed for fanless operation
The Industrial Motherboard K3921-N mSTX is based on the latest Intel® Core™ i3 and Intel® Processors series (Alder Lake N) with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts 1.4, one DisplayPort via front USB-Type-C plus onboard connectors for Embedded DisplayPort and Dual-Channel 24bit LVDS panels. Three independent displays with up to 4K display resolution (2x 4K + 1x FHD) are supported. The K3921-N is equipped with two M.2 (Storage and Wifi) connectors and in addition to this offers many other connectivity options like GPIO, two COM ports and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K3921-N is applicable in many vertical markets.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | Intel® Core™ i3 Processors & Intel® Processors N-series |
| Chipset | N1: Intel® Processor N50 (2C/6W) SoC N2: Intel® Processor N97 (4C/12W) SoC N4: Intel® Processor N200 (4C/6W) SoC N6: Intel® Core™ i3-N305 (8C/15W) SoC |
| Main Memory | 1x DDR5-4800 SODIMM Sockets up to 32 GByte, non-ECC |
| Graphics Controller | Intel UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs) |
| Display | 1x Embedded DP (eDP V1.4b up to 4K resolution2) 1x Dual-Channel 24bit LVDS Following max. display combinations are supported (Simultaneous use of LVDS and eDP is not supported): 2x DPP + 1x DPoC / 2x DPP + LVDS or eDP / 1x DPP + 1x DPoC + eDP or LVDS |
| Audio Controller | Realtek ALC256 |
| Audio | Stereo3, High Definition Audio Codec |
| Ethernet | Realtek RTL8111H with 10/100/1000 MBit/s, Teaming support Realtek RTL8125BG-CG with 10/100/1000/2500 MBit/s, TSN Support |
| USB | 3x USB 2.0 (by headers) 2x USB 3.2 Gen1 (Rear), 1x USB 3.2 Gen1 (Front), 1x USB 3.2 Gen1 Type-C (Front) 2x USB 3.2 Gen2 (Rear) |
| Serial | 1x RS232/422/485; 1x RS232 |
| Available I/Os | 8 Bit GPIO (by header); WLAN LED support, WLAN enable/disable support |
| SATA | 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 PCIe 2230/2242/2280 (Key-M, PCIe x2 Gen3/NVMe SSD modules) 1x M.2 PCIe 2230 (Key-E, WLAN PCIe and CNVi support/Bluetooth USB modules) |
| Power connector | External/Internal DC-In (DC Jack/4-Pin Micro-Fit) |
| Input Voltage | DC Input 12V or 19-28V, max. 5A/65W (external DC-In), max. 10A/100W (internal DC-In) |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | BIOS POST-/BIOS BOOT-/OS-HW Watchdog |
| Real Time Clock | integrated |
| Cooling | 1x PWM fan (CPU/System) |
| Operating System | MS Windows 10, MS Windows 11, MS Windows 10 IoT, Linux-64 No legacy OS support, no MBR installation (UEFI only) |
| Mechanical Dimensions | Mini-STX: 5.5“ x 5.8“ (140 x 148 mm) |
| Operating Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | Planned: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
Downloads
技术参数
Datasheet K3921-N mSTX
[ k3921-n_mstx.pdf, 1.19 MB, Jul.11.2024 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
白皮书
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
SMARTCASE™ S501
|
|
Chassis Kit Solution for K3921-N & K3921-H mSTX | more |
|
AC Adapter S26361-F5000-P006 |
|
19V / 3.42A, 65W - w/o power cord | |
|
COM Cable short w/o bracket S26361-F5000-K007 |
|
w/o slot bracket, length = 120mm; new 2mm pitch internal connector | |
|
WLAN Kit for SMARTCASE™ S511 S26361-F5000-W005 |
|
left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis | |
|
Wall Mount Bracket for SMARTCASE™ S511 S26361-F5000-X001 |
|
2x Bracket per chassis incl. screws | |
|
VESA mount SMARTCASE™ S5xx S26361-F5000-X002 |
|
"E-Line bracket" | |
|
DC-In Holder for SMARTCASE™ S511 S26361-F5000-X003 |
|
Holder incl. screws | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz | |
|

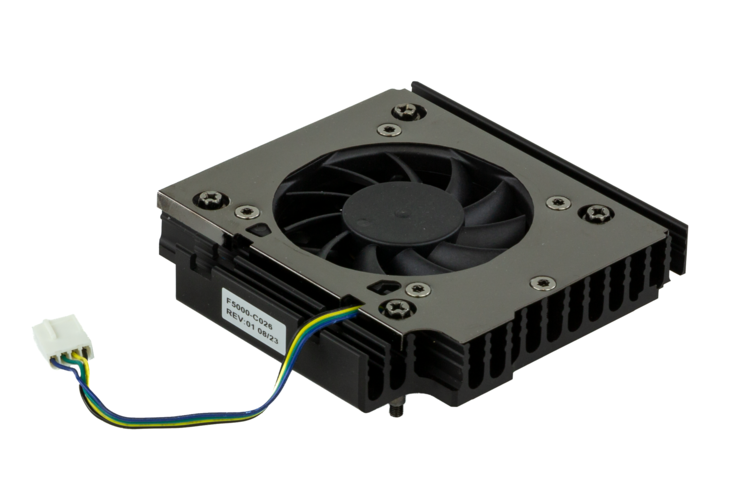

Slim Active Heatsink mSTX/mITX ADL-N 15W F5000-C026 |
|
Slim Active Heatsink mSTX/mITX ADL-N 15W | |
|

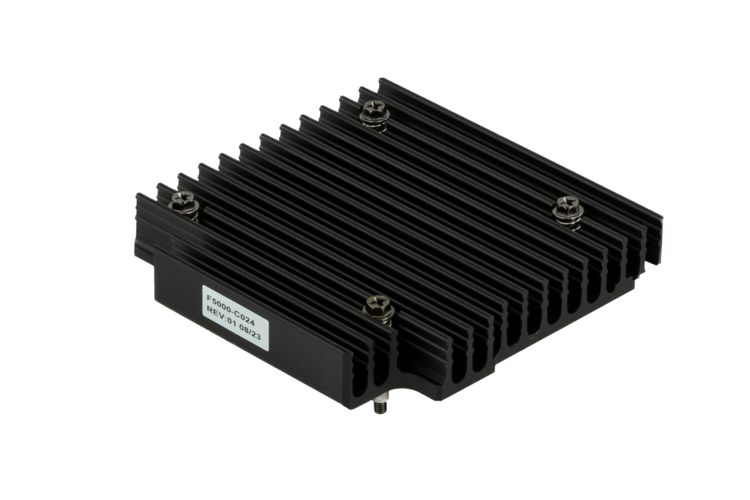

Slim passive cooler mSTX ADL-N 10W F5000-C024 |
|
Slim passive cooler mSTX ADL-N 10W | |
|
M.2 Dual SATA Module F5000-M004 |
|
M.2 Dual SATA Module |
