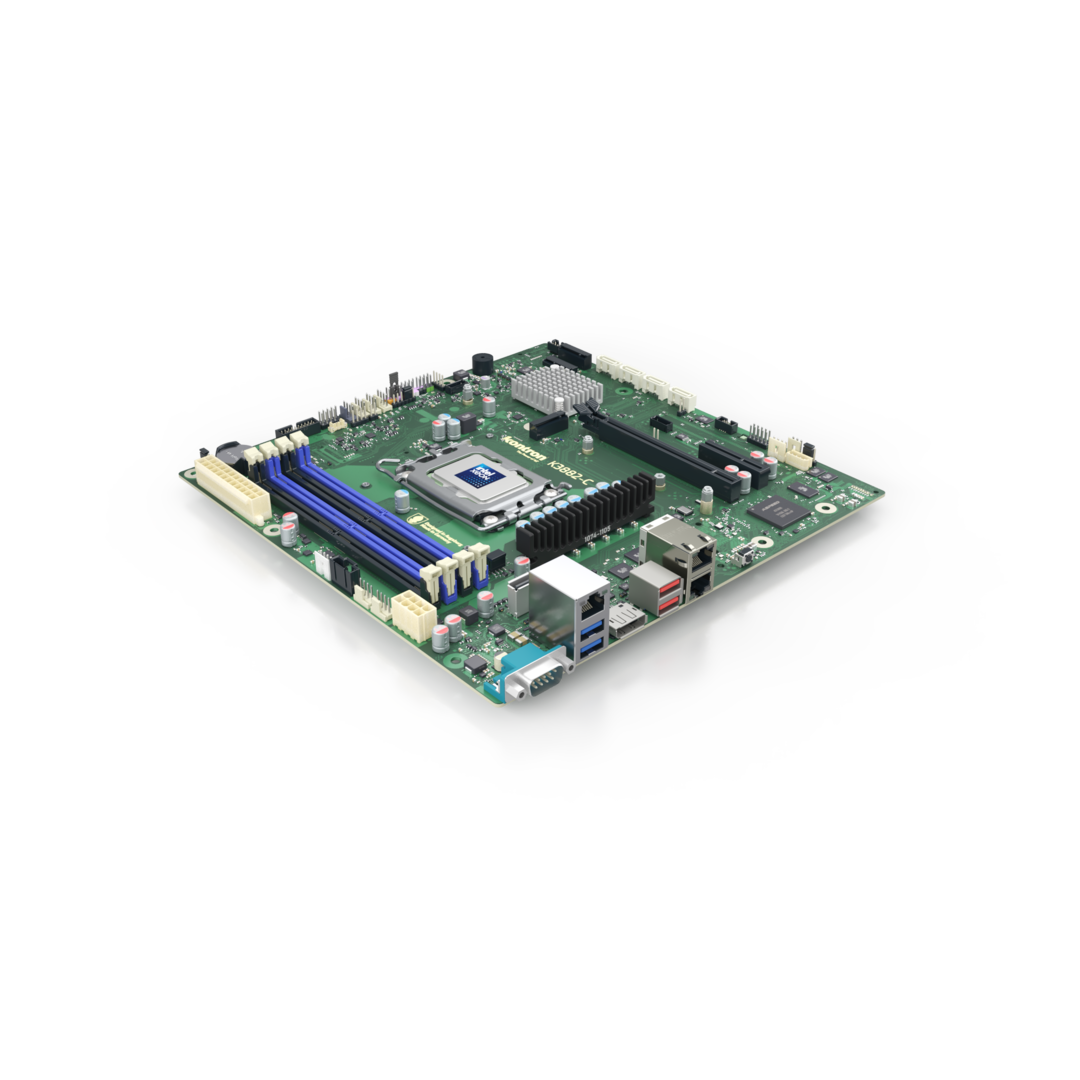

K3882-C µATX
Industrial Server Class Motherboard supporting Intel® XEON® E-2400 & Intel® XEON® 6300 Processors
Specifications
Coming soon- * Intel® C262 chipset
- * Latest DDR5 memory technology with ECC support
- * Server Management based on OpenBMC
- * 4x SATA, 3x M.2 & 2x PCIe expansion slots
- * ATX (Multirail) plus 8-pin socket (12V for CPU)
The K3881-C μATX is the first industrial Server Motherboard designed and made in Germany by Kontron. It is based on OpenBMC, enabling remote management while ensuring the highest level of security. It provides an enterprise-grade solution for small businesses and entry-level cloud services which require server solutions with professional-grade reliability, expandability and enhanced security capabilities. The K3881-C is full-featured with 10 GbE high speed ethernet, 3x PCI Express, 4x M.2., NVMe, ECC-Support, Kontron 5G wireless solutions support and many more features for server usages. With an availability of 5+ years and 24/7 continuous operation, a reliable and stable solution is guaranteed.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | Intel® XEON® E-2400 Processors Intel® XEON® 6300 Processors |
| Chipset | Intel® C262 |
| Main Memory | DDR5 5600 SDRAM 4x UDIMM, up to 128GB, ECC |
| Graphics Controller | ASPEED 2600 Video Graphic Adapter |
| Display | 1x Displayport™ 1.1a |
| Audio | On Board Buzzer |
| Ethernet | Intel® I210AT with 10/100/1000 MBit/s, shared LAN port with BMC Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support Intel® I210AT with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support Realtek RLT8211F for System Management (BMC LAN) |
| USB | 2x USB 3.2 Gen1, 2x USB 3.2 Gen2 Internal USB3.2 Gen1 header (2 ports) Internal USB3.2 Gen1 Stick socket |
| Serial | 1x RS232 (rear I/O, DB9 connector) |
| Available I/Os | 8 Bit GPIO (Input/Output); 3.3V/5V/12V supply voltage output; SMBus controller PCA9554A |
| SATA | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, VROC |
| Expansion | 1x M.2 PCIe 2230/2242/2280/22110 (Key-M ,PCIe x1 Gen4/NVMe SSD modules) 1x M.2 2280/22110 (Key-M ,PCIe x4 Gen4/NVMe SSD modules) 1x M.2 PCIe 2242/2280 (Key-B, PCIe x1 Gen3/USB/SATA SSD modules) 1x M.2 PCIe 2230 (Key-E, WLAN PCIe / Bluetooth USB modules) 1x PCIe x16 Gen5 PEG, bifurcation support 1x PCIe x1 Gen 4 (open slot) |
| Power connector | ATX (Multirail) plus 8-pin socket (12V for CPU) |
| Input Voltage | Multirail |
| BIOS | AMI Aptio 5.x (UEFI) BIOS modified and adapted by Kontron; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., No legacy OS support, no MBR installation (UEFI only) |
| Watchdog | BMC Hardware Watchdog |
| Real Time Clock | Integrated |
| Cooling | 6x PWM fan (CPU/System) |
| Operating System | Windows Server 2022, Windows Server 2025, Linux-64 No legacy OS support, no MBR installation (UEFI only) |
| Mechanical Dimensions | μATX: 9.6” x 9.6” (243.8 x 243.8 mm) |
| Operating Temperature | 0 °C - 60 °C |
| Humidity | 5%-85% |
| Certifications | Planned: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
