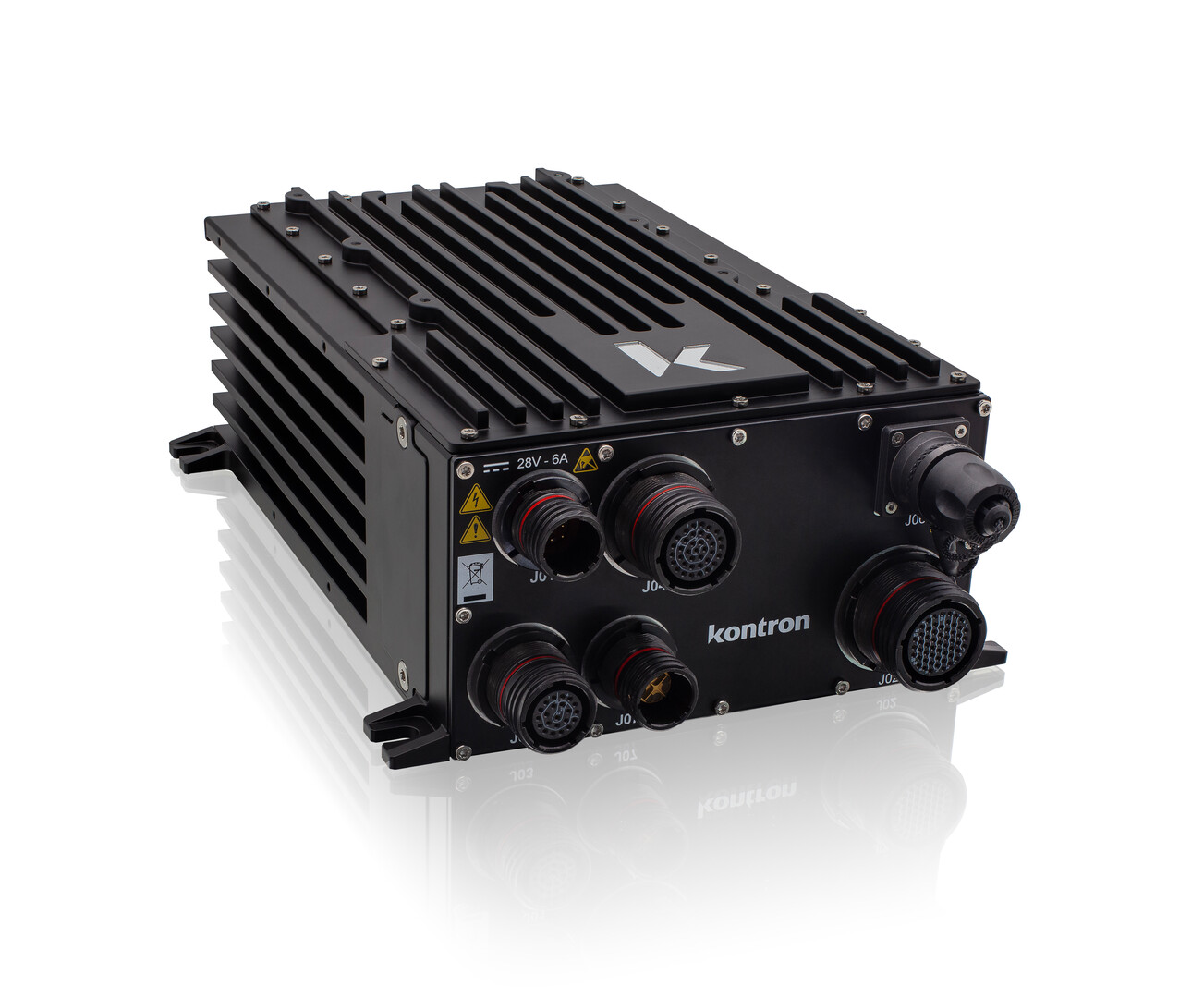

HARAKAN-F New
VPX Rugged Compact Mission Computer
Specifications
- SWaP-optimized embedded computer
- SOSA 3U VPX plug-in cards
- Latest silicon gen Intel® Core™
- Fanless conduction cooling, designed for harsh environments
- ITAR/BAFA free
HARAKAN-F is a compact, fanless conduction-cooled mission computer providing high density processing and powerful GPGPU for AI computing. Its scalable VPX COTS architecture, aligned to Sensor Open Systems Architecture (SOSA) Technical Standard, allows to benefit from the latest technology available in the market with optimized cost and time-to-market.
A cybersecurity chain of trust is implemented through hardware and software secure boot, trusted boot and vulnerability watch services.
Typical applications for the HARAKAN-F system include mission computing, vetronics, software defined radio, video capture, AI vision processing, rugged firewall, network gateway and electronic warfare.
Designed and manufactured in Europe, HARAKAN-F is ITAR and BAFA free, and is available in production for a minimum of 10 years.
Features
| CPU | Intel® Core™ i7-1185GRE, 12-28W TDP, Quad-Core @1,8GHz Base frequency, configurable up to 2.8GHz |
| I/Os | 1x 10/100/1000Base-T 1x USB3.0 + 1x USB2.0 2x RS232 or 1x 422/485, full duplex, configurable 1x Maintenance simplified serial port RS232 4x configurable GPIO 1x DP++ (only with Core i7 CPU) |
| OS Support | Linux 64 bits (default), Windows 10 IoT (on-request) Kontron Sec-Line platform hardened openWRT hypervisor (on request) |
| Dimensions (W x H x D) | 159 x 89 x 240 mm (62.6 x 35 x 94.5 inch) |
| Weight | 3,9 kg (86 lbs) |
Downloads
技术参数
HARAKAN-F Datasheet
[ harakan-f_datasheet.pdf, 2.9 MB, Jun.14.2024 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
