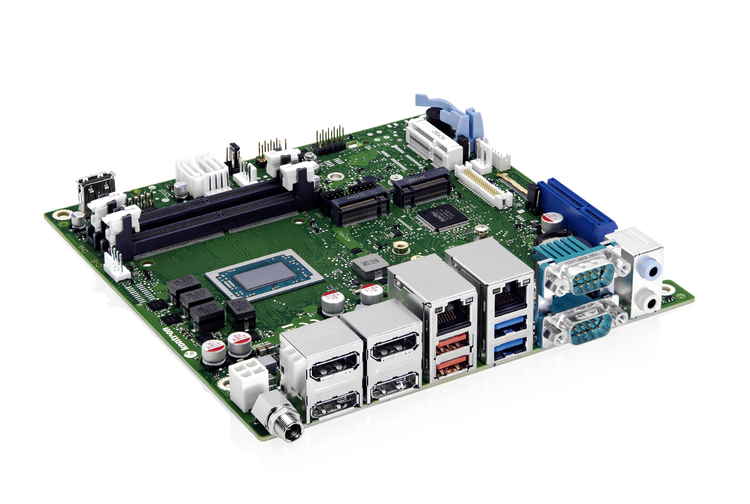

D3713-V/R mITX
Industrial Motherboard supporting the AMD Ryzen™ Embedded V1000/R1000 Processor Series (SoC)
Mouseover Zoom loading...
Specifications
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- Designed for Fanless Operation
- M.2 Key-B & M.2 Key M & Mini-PCI Express® supported
Platform for AMD FP5 SoC Processor
The industrial motherboard D3713-V/R mITX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs.
It is equipped with up to four DisplayPorts, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on how much (graphical) performance is required, there are 6 motherboard versions with different AMD processors available.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | AMD Embedded V1202B SoC AMD Embedded V1605B SoC AMD Embedded V1807B SoC AMD Embedded R1102G SoC AMD Embedded R1305G SoC AMD Embedded R1606G SoC |
| Chipset | SoC |
| Main Memory | 2x DDR4 3200 SDRAM up to 32 Gbyte |
| Graphics Controller | Integrated AMD Radeon™ Vega Graphics |
| Display | Up to 4x DP V.1.4 (thereof 2x DP++) 1x embedded DP (eDP V1.4; supporting 4K resolutions) 1x Dual-Channel 24bit LVDS Following max. display combinations are supported: V-Series: 2x DP + 1x LVDS + 1x eDP, 3x DP + 1x LVDS or eDP, 4x DP R-Series: 1x DP + 1x LVDS + 1x eDP, 2x DP + 1x LVDS or eDP, 3x DP |
| Audio Controller | Realtek ALC256 |
| Audio | 5.1-channel, High Definition Audio Codec |
| Ethernet | 1x Intel® i210LM with 10/100/1000 MBit/s 1x Realtek RTL8111H |
| USB | 2x USB 2.0 (by header) 2x USB 3.2 Gen1 2x USB 3.2 Gen1 (by header) 2x USB 3.2 Gen2 |
| Serial | 1x RS232/422/485; 3x RS232 (2x by header) |
| Available I/Os | GPIO (by header) |
| SATA | 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 PCIe x2 (Key-M: 2230/2242/2280) 1x Mini PCIe (halfsize/fullsize) PCIe x4: 1x Gen3 1x M.2 PCIe x4 (Key B: 2242/2252/2260/2280) |
| Power connector | External/Internal DC-In 8-34 V (DC Jack/4-Pin) |
| Input Voltage | DC Input 8 V-34 V (max. 10 A /max. 125 W) |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 2 level HW Watchdog (BIOS Boot/OS) |
| Real Time Clock | Integrated |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | MS Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) |
| Humidity | 5%-85% |
| Certifications | CE Class-B, FCC-B verified cTÜVus acc. IEC62368-1 |
Downloads
Driver Updates
BIOS Updates
技术参数
Datasheet D3713-V/R mITX
[ d3713-mitx_datasheet.pdf, 2.17 MB, Sep.18.2023 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
白皮书
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Tech Specs D3713-V/R
[ tech-spec_d3713_web.pdf, 859.39 KB, Jun.01.2021 ]
Tech Specs INDUSTRIAL MOTHERBOARDS
[ folder_motherboard_d3713_updatefeb22_web.pdf, 2.56 MB, Nov.07.2022 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
D3713-V1 |
|
AMD Embedded V1202B SoC; GPU @ 1.0 GHz (3x Compute Units; up to 4 displays) | |
|
D3713-V2 |
|
AMD Embedded V1605B SoC; GPU @1.1 GHz (8x Compute Units; up to 4 displays) | |
|
D3713-V4 |
|
AMD Embedded V1807B SoC; GPU @1.3 GHz (11x Compute Units; up to 4 displays) | |
|
D3713-R2 |
|
AMD Embedded R1305G SoC; GPU @1.0 GHz (3x Compute Units; up to 3 displays) | |
|
D3713-R4 |
|
AMD Embedded R1606G SoC; GPU @1.2 GHz (3x Compute Units; up to 3 displays) |
Accessories
|

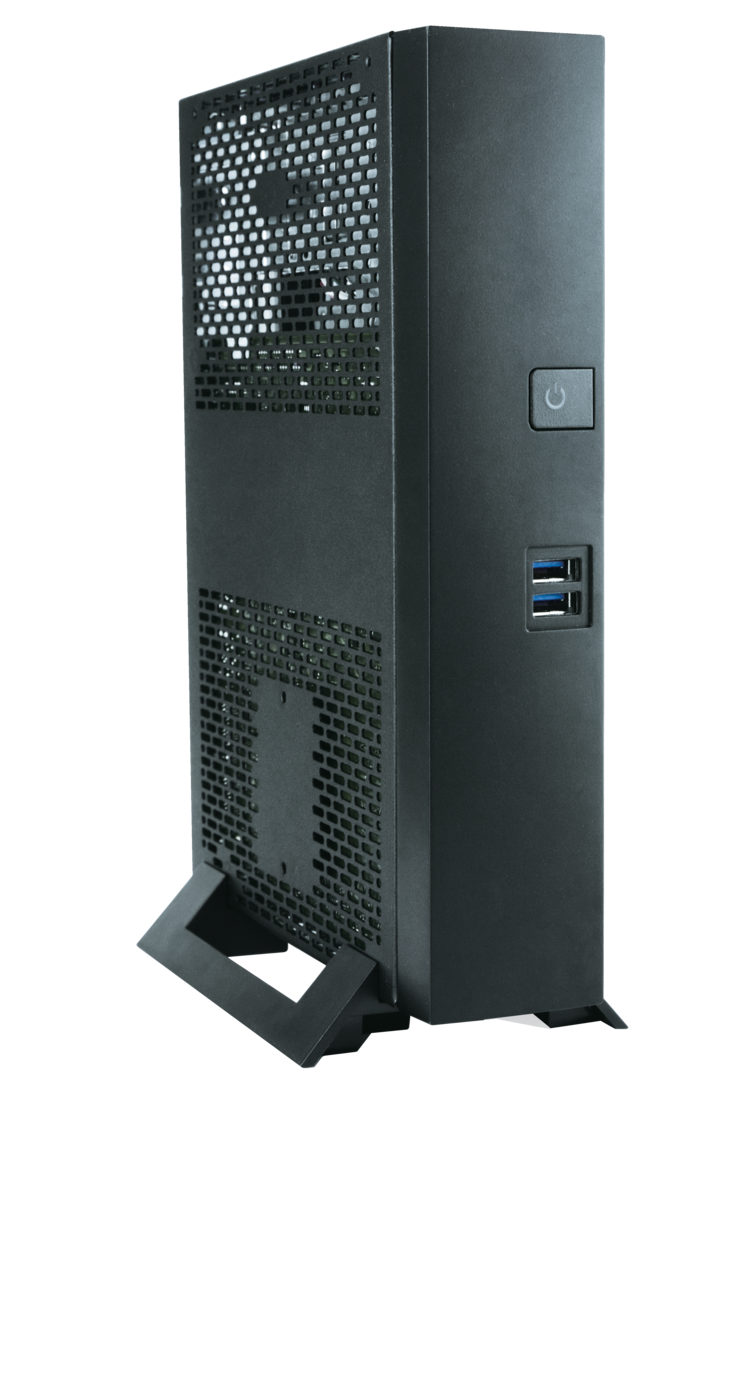

SMARTCASE™ S711 S26361-F5000-J008 |
|
IPC mini-ITX Chassis incl. illuminated power button, 2x Front USB 3.1, HDD cage w. 4 pin PWM fan, SATA and drive power cable, stands (horizon./vert.), wall mount, Chassis intrusion, non branded! | |
|

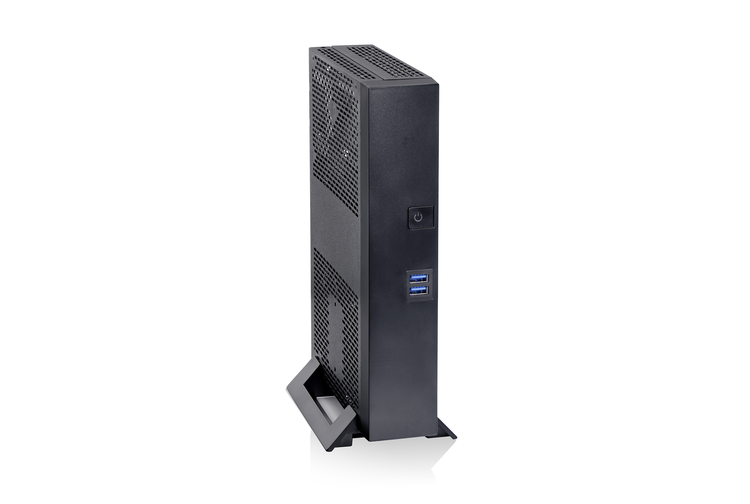

SMARTCASE™ S730
|
|
Chassis Kit Solution for D3713-V/R, D3723-R & K3931-N mITX | more |
|

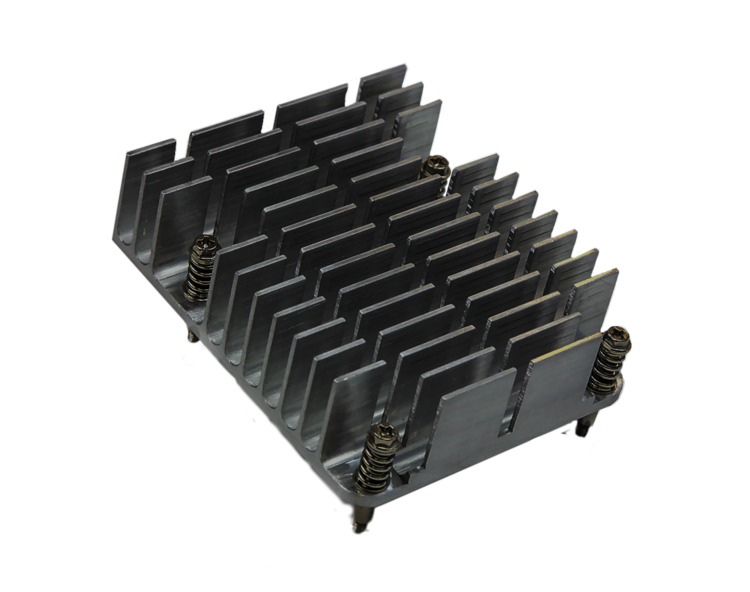

Passive Cooler AMD FP5 15W S26361-F5000-C019 |
|
Passive cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5 | |
|

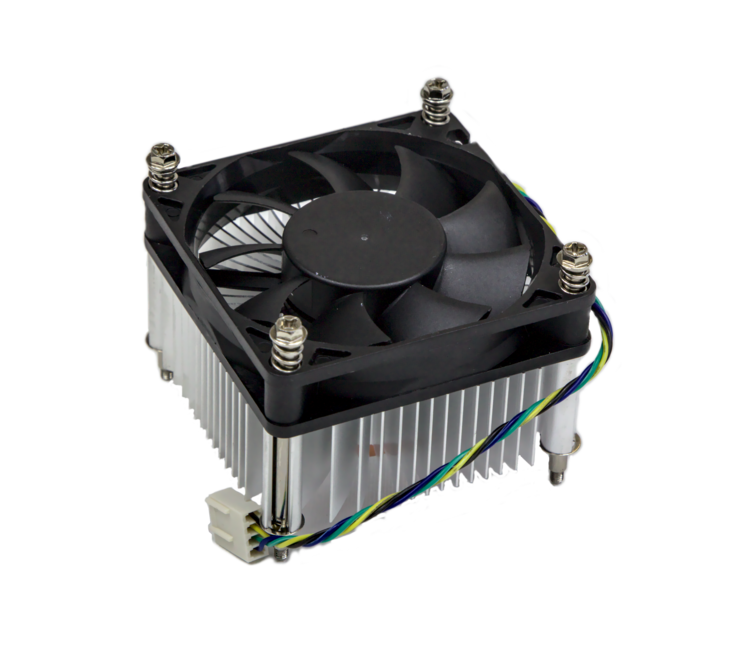

Active Cooler AMD FP5 54W S26361-F5000-C020 |
|
Active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5 | |
|
Active Cooler AMD FP5 35W S26361-F5000-C021 |
|
Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5, suitable for SMARTCASE™ S711 chassis! | |
|
Internal PSU for chassis Kit S26361-F5000-P004 |
|
AC Adapter, 12V / 5.4A, 65W, low profile extension card format | |
|
AC Adapter S26361-F5000-P006 |
|
19V / 3.42A, 65W - w/o power cord | |
|
AC Adapter 20 V/120 W S26361-F5000-P007 |
|
Delta ADP-120 VH D | |
|
DrivePowerCable S26361-F5000-K001 |
|
Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm) | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
Risercard S26361-F5000-R006 |
|
1 x PCIe x4 | |
|

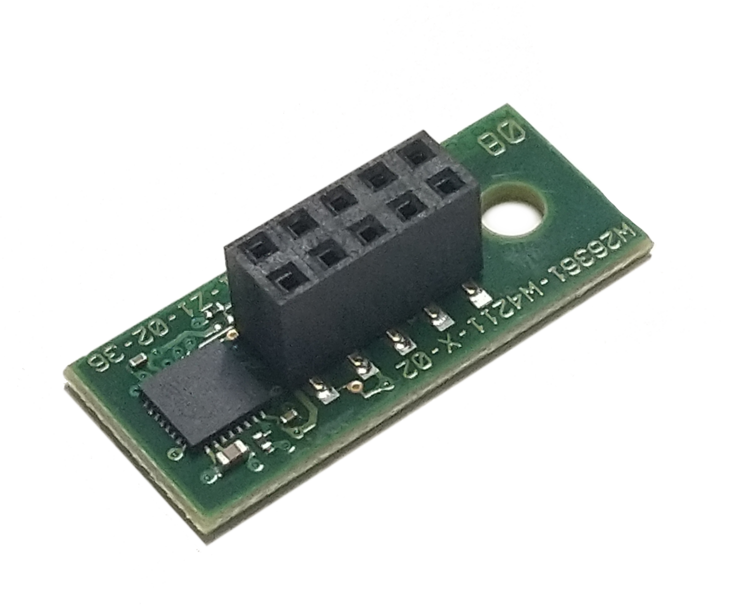

TPM Upgrade Module S26361-F5000-R012 |
|
TPM V2.0 (for CoffeeLake; SPI Interface) | |
|
Mini-PCIe to M.2 2230 Converter for WLAN/BT S26361-F5000-M003 |
|
all Boards with fullsize Mini-PCIe socket | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz | |
|

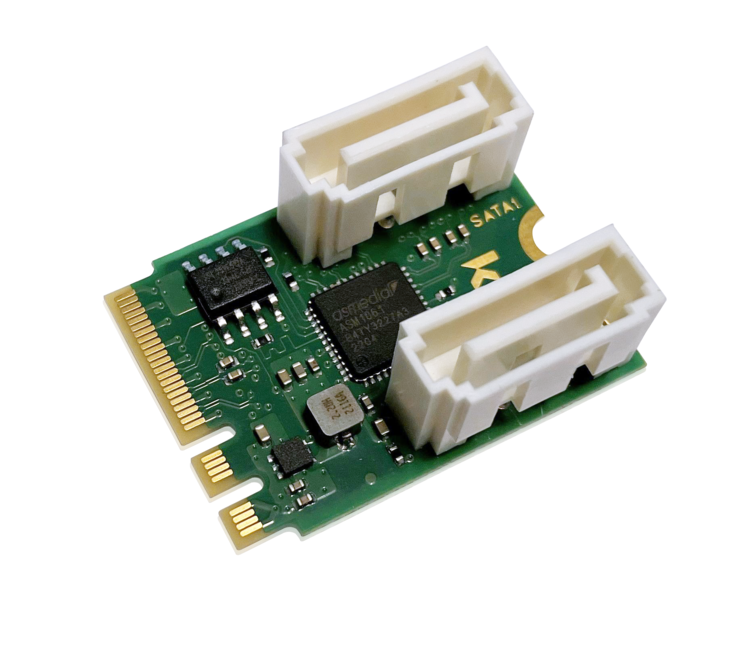

M.2 Dual SATA Module F5000-M004 |
|
M.2 Dual SATA Module |
