CP6007-RA New

VITA47 rugged CompactPCI® PICMG2.16 Blade

Mouseover Zoom loading...

Specifications

For long term programs in harsh environments
11th Gen Intel® Xeon® 2.1GHz sixcore CPU
Proven CPCI eco system
European design and production

Download Datasheet

For Defense and Industrial outside facilities

The rugged air-cooled successor of CP6004-RA
General computing in harsh environments is a safe bet with the rugged/VITA47 qualified CP6007-RA. It provides up-to-date technology, and at the same time the hardware interfaces are widely backward compatible to earlier Kontron blades such as CP6004-RA.

Future-proof investment by virtualisation
CP6007 is well suited for advanced Multi-CPU server applications, built as virtual machines: A future proof investment.

Outstanding performance-per-watt
CP6007-RA is based on a sixcore Intel^® Xeon^®processor with 10nm technology, with outstanding performance-per-watt values. Its scalable power budget allows users to tailor the power dissipation to their requirements. 32GB soldered memory with ECC is provided.

Various extensions: storage, XMC, PMC, rear-I/O
CP6007-RA is prepared to operate with onboard industrial grade M.2 flash devices, NVMe or SATA, and with 2.5 inch SATA hard disks or SSDs to be placed onto a respective rear-I/O module or onto a separate HDD carrier KIT. CP6007-RA also features an XMC site according to XMC.3 supporting x8 PCI Express^®, and alternatively a PMC site. Kontron's rear I/O module series is fully functional with CP6007-RA.

A safe choice
The well-established CompactPCI^® eco system, combined with a long availability of Intel's processor family, and Kontron’s reliable technical support, make CP6007-RA a safe choice.

Downloads

技术参数

Datasheet CP6007-RA
[ cp6007-ra_datasheet.pdf, 259.28 KB, Dec.13.2024 ]

参考手册

CP6007-SA-RA_User_Guide_v10_2023-08-25
[ cp6007-sa-ra_user_guide_v10_2023-08-25.pdf, 7.48 MB, Aug.25.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Accessories

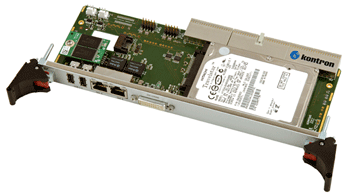

CP-RIO6-001	4HP 后置 I/O 接口支持 6U Compact PCI CP6001	more
CP-RIO6-A / CP-RIO6-A216	6U CompactPCI CP6016 4HP 后置 I/O 接口卡	more

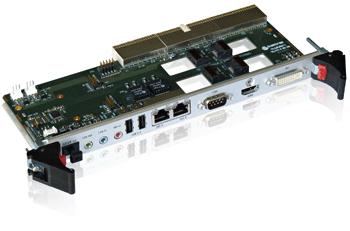

CP-RIO6-B / CP-RIO6-B216	6U CompactPCI CP6001 4HP 后置 I/O 接口卡	more

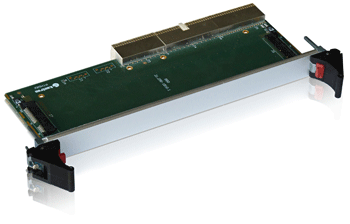

CP-RIO6-M	6U CompactPCI CP6001 & CP6016 4HP 后置 I/O 接口卡	more
