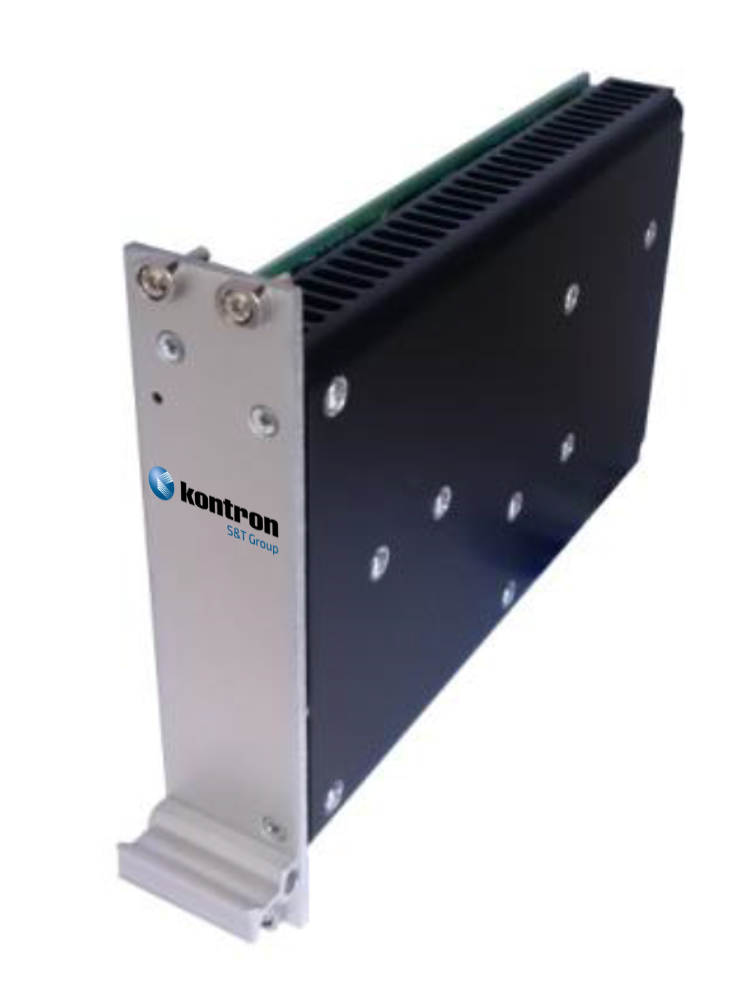

CP3-SVE-M120DC-WV

Universal DC Power Supply for CompactPCI
Specifications
  • 3U, 6HP, 120W, M-style
  • Ultra wide range 14.4 to 154 VDC
  • Five outputs for CPCI
  • Extended temperature, fanless
  • Redundant operation
Download Datasheet

The CP3-SVE-M120DC-WV is a M-style plug-in power supply unit for Industrial and Railways applications. Six nominal input voltages from 24V to 110V, redundant operation, as well as extended operating temperature with fanless cooling make the CP3-SVE-M120DC-WV universal for CompactPCI systems with medium power requirements.

Downloads

技术参数

CP3-SVE-M120DC-WV Datasheet
[ cp3-sve-m120dc-wv_20210305_datasheet.pdf, 608.48 KB, Mar.09.2021 ]

参考手册

Generic Power Supply Manual
[ 24139_cpci_psu_rev--1-0_2021-05-06_w2016.pdf, 2.04 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
