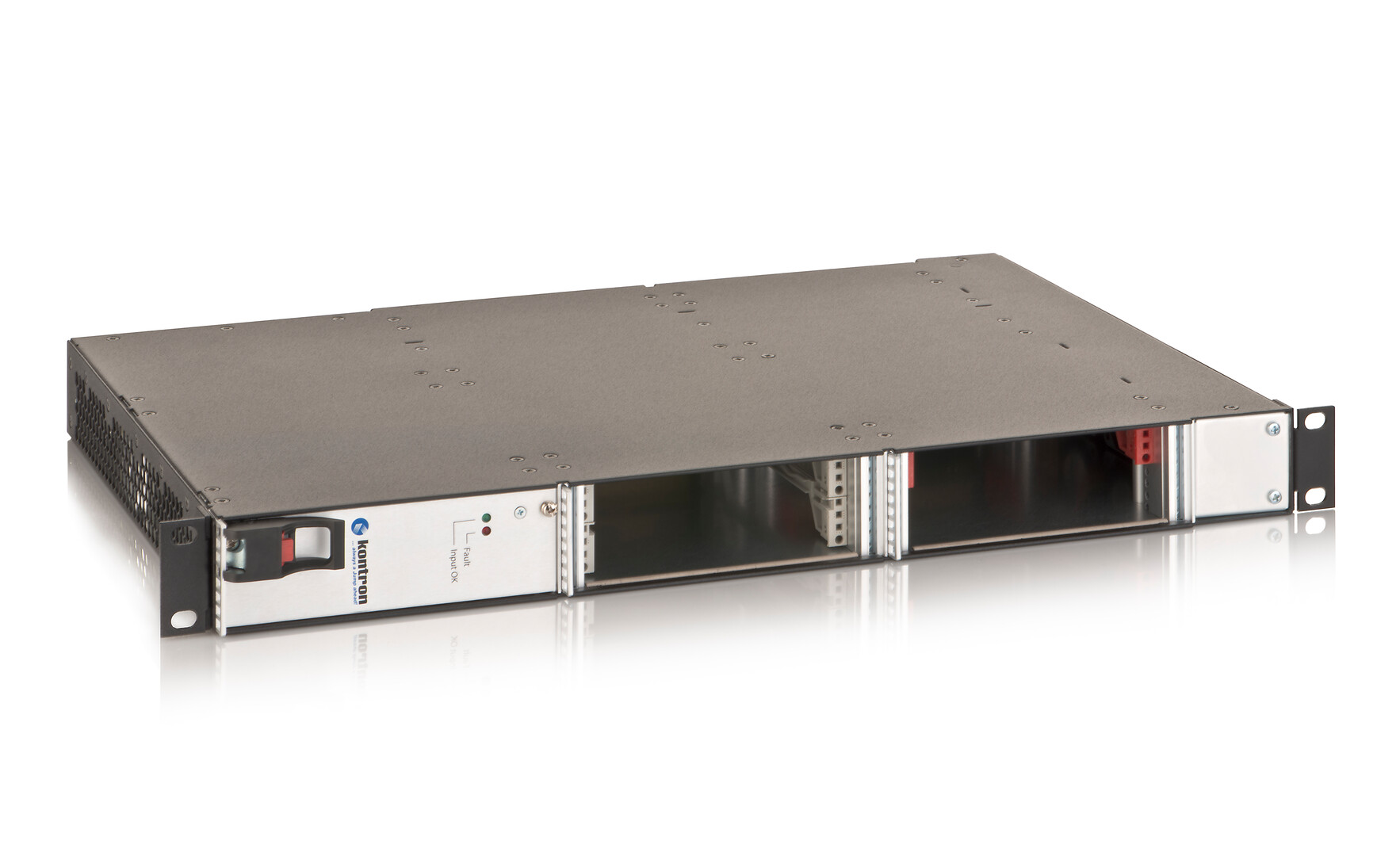

CP-ASM1 Low Profile Rack

19" Rackmount: 3 CPCI Slots at only 1U Hight

Specifications

For CPU and 2 peripheral boards
PSU, fans, backplane ready integrated
Efficient side-to-side cooling
Options for Rear-I/O and shelf management

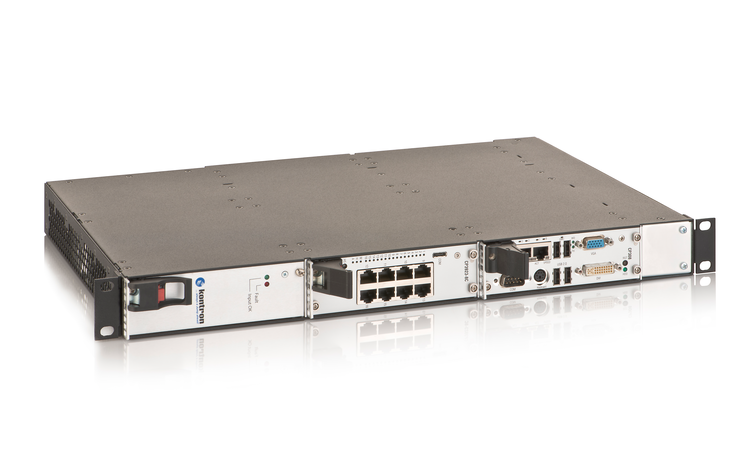

The 19" card cage is the perfect low profile solution for horizontal mounting of 3U CompactPCI boards: A system controller, two peripheral boards, and rear I/O transition modules if needed.

The rack-mount housing with backplane and cooling fans is available with black outside coating (RAL9005), completely mounted, wired, and tested, with a 200 W Kontron power supply. Integrated cooling fans provide for air stream from CPU side to power supply side.

A shelf manager unit is provided as separate option.

Downloads

技术参数

Datasheet CP-ASM1 Low Profile Rack
[ cp-asm1_lowprofilerack_20170727_datasheet.pdf, 1.24 MB, Aug.31.2017 ]

CP3-SVE-P200AC Datasheet
[ cp3-sve-p200ac_datasheet.pdf, 599.64 KB, May.10.2021 ]

参考手册

Generic Power Supply Manual
[ 24139_cpci_psu_rev--1-0_2021-05-06_w2016.pdf, 2.04 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

技术信息

Power Requirements for CPCI Boards
[ cpci_manual_technical-info_power-requirement.pdf, 38.05 KB, Apr.20.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

CP3-SVE-P200AC CP3-SVE-P200AC		Positronic47 3U 电源	more
CP3-SVE-P200DC CP3-SVE-P200DC		Positronic47 3U 电源	more
