COM Express® compact Type 6 with 6th Generation Intel® Core™ Processors
Mouseover Zoom loading...
Specifications
  • COM Express® compact pin-out type 6 Computer-on-Module with
  • 6th Generation Intel® Core™ Processors
  • Up to 24 GByte DDR4 memory (8 GByte DDR4 memory down)
  • Up to 10 lanes PCIe 3.0
  • 4x USB 3.0, 2x SATA 6G
  • Support of Kontron’s Embedded Security Solution (Approtect)
Download Datasheet

The Kontron cSL6 is based on the COM Express compact standard form factor and 6th generation Intel® CoreTM i7, i5 and i3 processors. With up to 24 GB DDR4 memory (1x DDR4 SO-DIMM up to 16 GByte, 2nd channel DDR4- memory down up to 8 GByte) and up to 32 GB SLC on board SSD, the Kontron COMe-cSL6 can deliver just about any application to any market.

The key for Kontron with this new module plattform is security. The COMe-bSL6 is provisioned with a security chip to enable the support of Kontron's Embedded Security Solution - Approtect.

Learn more about the security solution Approtect here: Security Solution - Approtect

Features

Compliance COM Express compact Pin-out Type 6
Dimensions (H x W x D) 95 x 95 mm
CPU Intel® Core™ i7-6600U, 2x 2.60 GHz, GT3, 15 W

Intel® Core™ i5-6300U, 2x 2.40 GHz, GT3, 15 W

Intel® Core™ i3-6100U, 2x 2.30 GHz, GT2, 15 W

Intel® Celeron® Processor 3955U, 2x 2.0 GHz, GT1, 15W
Chipset Integrated SoC
Main Memory Up to 8GB DDR4 memory down & up to 16GB DDR4 SODIMM
Graphics Controller Intel® HD Graphics 520 (Celeron® 3955U: Intel® HD Graphics 510)
Ethernet Controller Intel® I219LM
Ethernet 10/100/1000 MBit Ethernet
Hard Disk 2x SATA 6Gb/s
Flash Onboard up to 64 GByte SLC eMMC 5.0 (depending on SKU - standard feature or available on request)
PCI Express / PCI support 5x PCIE3.0 (5 controllers, 5 x1, 1 x4 + 1 x1) Option: 6 Lanes if no LAN
4x PCIE3.0 on PEG Lanes 0-3 (1 controller, 1 x4 or 1 x2 or 1 x1)
Panel signal DDI1: DP++, DDI2: DP++, DDI3: -, VGA: -, LVDS: Dual Channel 18/24 bit
USB 4x USB 3.0/2.0, + 4x USB 2.0
Serial 2x serial interface (RX/TX only)
Audio Intel® High Definition Audio
Common Features SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC
BIOS AMI UEFI, vPRO optional
Humidity 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Additional on request: 1x PCIe x1 additional w/o onboard LAN, eDP, max 64 GByte eMMC, instead of LVDS, vPRO (AMT/TXT/AES Support),
industrial grade -40 °C to +85 °C
Power Management ACPI 4.0, S5 Eco
Power Supply 8.5 V – 20 V Wide Range ATX, Single Supply Power
Special Features Trusted Platfom Module TPM 2.0, Security Chip,
POSCAP capacitors
Operating System WES7, WES8, W7, W8, Linux, VxWorks
Temperature Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
On request Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating
Supported Modules COMe-cSL6, commercial temperature

Downloads

Solution Brief

Intel Solution Brief: Computer-on-Module Flexibility at the Edge
Kontron COM Express® and COM-HPC® modules with 13th Gen Intel® Core™ mobile processors deliver powerful performance, AI, and graphics with portfolio flexibility for industrial-grade deployments.
[ 18933-1-intel-rpl-p-kontron-solution-brief-v4.pdf, 1.67 MB, Mar.03.2023 ]

技术参数

Datasheet COMe cSL6
[ come-csl6_datasheet.pdf, 1.87 MB, Feb.28.2022 ]

参考手册

COMe-cSL6 User Guide
Rev 1.9 Feb. 24, 2022
[ come-csl6-user-guide-rev-1-9-2022-02-23.pdf, 1.69 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

白皮书

Modules and Motherboards WP [restrictions apply]

Robotic-Assisted Surgery White Paper [restrictions apply]

应用案例

Autonomous Driving
Read how our COM Express® Module is working perfect for application from b-plus with its flexibility, bandwith, reliability and the required graphics.
[ uc_b-plus_eu.pdf, 4.78 MB, May.26.2021 ]

COM Express® Basic for Autonomous Transportation in Rugged Environments
Implementing Kontron’s latest COMe® Basic based on Intel’s® 11th generation Xeon® processors and ECC memory provided the optimum power and performance
[ adas_en_use-case_kontron.pdf, 1.54 MB, Oct.11.2022 ]

The tough choice of Processors
Solving challenges in selecting computer boards & modules for IIoT projects. In this article we support you to make the right choice for your application: To find the best balance of processing power, graphics capabilities and connectivity on the one hand and size, power consumption, and cost on the other.
[ artikel_processor-choice_eu-1-.pdf, 4.42 MB, Apr.20.2023 ]

Tech Spec Sheet

COM EXPRESS® compact
[ tech-spec_comexpress.pdf, 7.08 MB, Apr.04.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe-cSL6 3955U
36021-0000-20-1		 COM Express® compact pin-out type 6 Computer-on-Module with Intel®Celeron 3955U, 2x2.0GHz, DDR4 SO DIMM Socket
COMe-cSL6 i3-6100U
36021-0000-23-3		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™i3-6100U, 2x2.3GHz, DDR4 SO DIMM Socket
COMe-cSL6 i5-6300U
36021-0000-24-5		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™i5-6300U, 2x2.4GHz, DDR4 SO DIMM Socket
COMe-cSL6 i5-6300U 4GB
36021-4000-24-5		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™i5-6300U, 2x2.4GHz, 4GB memory down, DDR4 SO DIMM Socket
COMe-cSL6 i7-6600U
36021-0000-26-7		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™i7-6600U, 2x2.6GHz, DDR4 SO DIMM Socket
COMe-cSL6 i7-6600U 8GB
36021-8000-26-7		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™i7-6600U, 2x2.6GHz, 8GB memory down, DDR4 SO DIMM Socket
COMe-cSL6 i7-6600U 8GB/32S
36021-8032-26-7		 COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i7-6600U, 2x2.6GHz, 8GB memory down, DDR4 SO-DIMM socket, 32GB eMMC (SLC)

Accessories

COMe Eval Carrier2 T6
38116-0000-00-5 		COMe Eval Carrier2 T6 COM Express® Eval Carrier2 Type 6 with 5mm COMe connector more
COMe Ref.Carrier T6

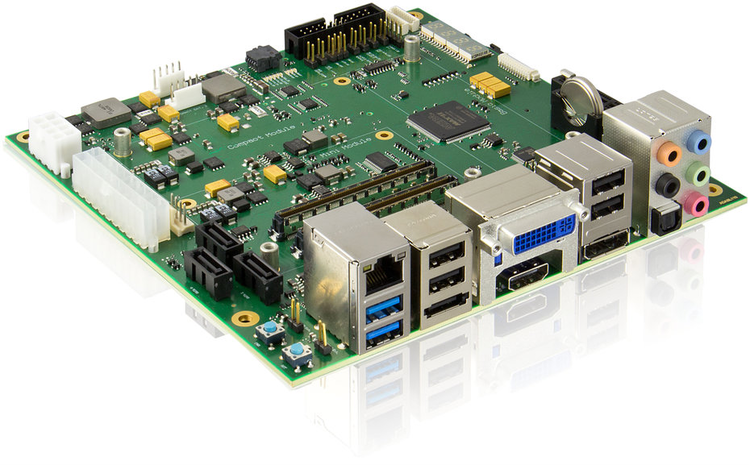

38114-0000-00-0 		COMe Ref.Carrier T6 COM Express® Reference Carrier Type 6 more
HSP COMe-cSL6/cKL6, thread
36021-0000-99-0		 Heatspreader for COMe-cSL6/cKL6, threaded mounting holes
HSP COMe-cSL6/cKL6, through
36021-0000-99-1		 Heatspreader for COMe-cSL6/cKL6, through holes
DDR4-2400 SODIMM 4GB_COM
97017-4096-24-0		 DDR4-2400, 4GB, 260P, 1200MHz, PC4-2400 SODIMM
DDR4-2400 SODIMM 8GB_COM
97017-8192-24-0		 DDR4-2400, 8GB, 260P, 1200MHz, PC4-2400 SODIMM
DDR4-2400 SODIMM 16GB_COM
97017-1600-24-0		 DDR4-2400, 16GB, 260P, 1200MHz, PC4-2400 SODIMM
DDR4-2400 SODIMM 4GB E2_COM
97017-4096-24-2		 DDR4-2400, 4GB, E2, 260P, 1200MHz, PC4-2400 SODIMM
DDR4-2400 SODIMM 8GB E2_COM
97017-8192-24-2		 DDR4-2400, 8GB, E2, 260P, 1200MHz, PC4-2400 SODIMM
DDR4-2400 SODIMM 16GB E2_COM
97017-1600-24-2		 DDR4-2400, 16GB, E2, 260P, 1200MHz, PC4-2400 SODIMM
