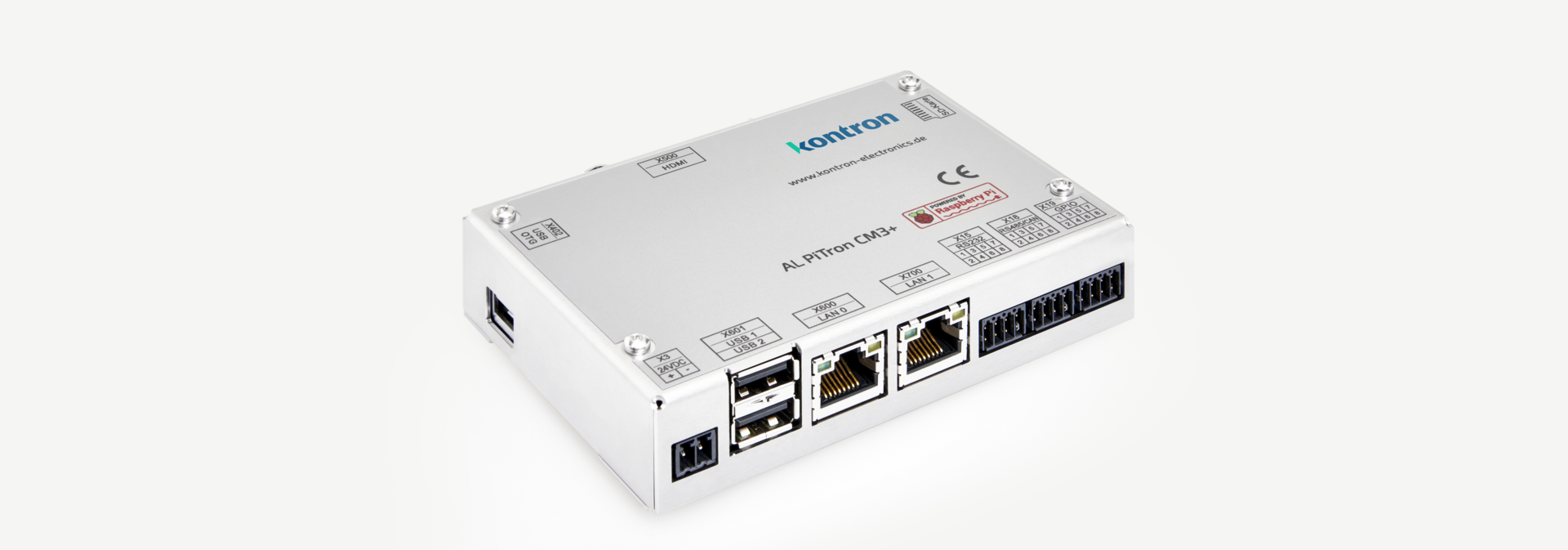

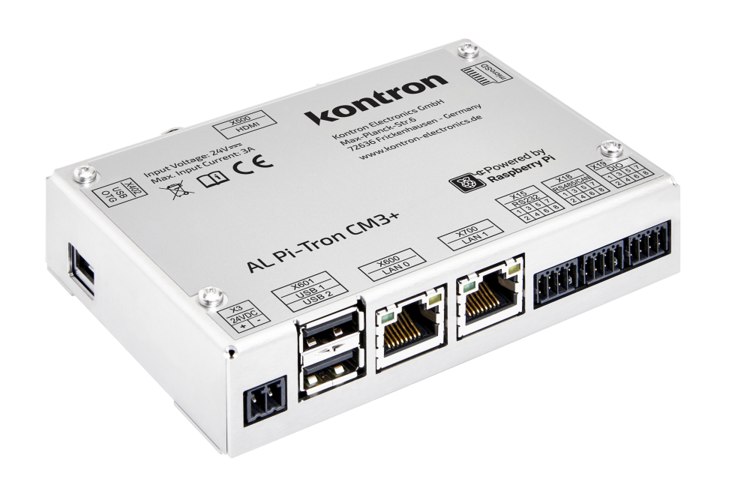

AL Pi-Tron CM3+
Compact Box-PC, Broadcom BCM2837B0, 4x Arm® Cortex®-A53 @1.2 GHz
Specifications
- Memory: LPDDR2-RAM, eMMC or SD-Card
- Communication: Ethernet, USB, RS232, RS485, CAN, DIO, Display: 1x micro HDMI
- Operating System: Raspbian Linux (not preinstalled)
Pi-Tron has been designed to focus primarily on communication functions and is often used as a gateway or data logger. In combination with the multifunctional I/O modules, even complex automation solutions can be implemented.
The Pi-Tron CM3+ and the Pi-Tron CM4 can optionally be equipped with the SoftPLC CODESYS®. This makes it possible to develop all applications that require a programmable logic controller.
Features
| CPU | Broadcom BCM2837BO 4x Arm® Cortex®-A53 @1.2 GHz |
| LPDDR2-RAM | 1 GByte |
| eMMC | 8 GByte/32 GByte When using eMMC memory, booting from the SD card is not possible. |
| SD CARD | Compute Module CM3+ Lite, 1x microSD Card Slot for operating system |
| FRAM | 16 kbit |
| Ethernet | 2x 10/100 Mbit/s |
| USB | 2x 2.0 Host |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x 2.0 |
| DIO | 4x DIO (24 V/up to 800 mA) |
| LCD INTERFACE | 1x 2-lane DSI Display Interface (up to 1 Gbit/s per lane, DSI 1) 1x Micro-HDMI 1.3a 1080p @30 fps |
| Touch | 1x I²C, 1x USB |
| Camera Interface | 1x 2-lane CSI Camera Interface (CSI 1) |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | 3.4 W... 9.6 W (without periphery) |
| Form Factor | Stainless steel housing 111 x 25 x 76 mm for mounting on 35 mm mounting rail acc. to EN 60715 |
| Temperature | Range: 0 °C ... +55 °C |
| Protection Class | IP20 |
| Approvals | FCC and UL61010, CB report |
| Operating System | Raspbian Linux (not preinstalled) |
