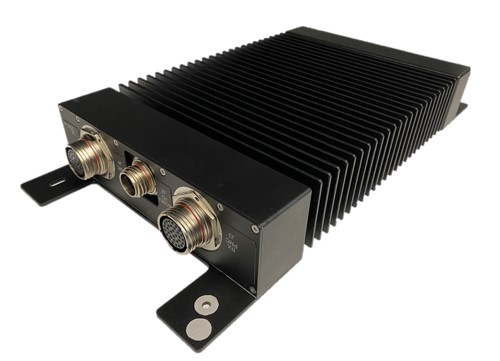

Ace Flight™ KPSU-1P
ARINC 792 Single Phase Power Supply Unit (KPSU)
Specifications
Coming soon- Single Phase / Dual Power Input
- 115VAC/360-800Hz Input to 28/48VDC Output
- Total Output Power Configurations: from 500W to 1.5KW
- Passive Cooling (no fans)
- ARINC 792 compliant
- RTCA DO-160G qualified, Line-fit Ready
Kontron has developed its own ARINC 792-qualified Ku/Ka-band power supply unit, the KPSU-1P, designed to provide anywhere from 500W to 1.5KW (ordering option) of clean, filtered, isolated power to next gen flat panel Electronically Steered Antennas (ESAs). With single or dual power input (single-phase 115VAC/360-800Hz to 28/48VDC), integrated EMI filtering, Over-voltage, Over-Current and Lightening Protection circuitry, the KPSU-1P delivers maximum power efficiency and control functions. Its unique, customizable design strikes the perfect balance between size, weight, power efficiency and thermal management and can be adapted according to individual customer needs.
These features offer OEMs and system integrators a cost-effective, flexible KPSU solution with the smallest footprint on the market.
Features
| Input Voltage | 115VAC/360-800Hz |
| Outut Voltage Range | 28/48VDC (ordering options) |
| Power | From 500W to 1.5KW (ordering options) |
| Characteristics | Integrated EMI filtering Over-Voltage Over-Current Lightning Protection circuitry Hold-Up 200ms |
| Mounting | Flange Mount Enclosure Provision per ARINC 792 |
| Cooling | Passive Cooling (no fans), Non-Vented |
| Operating Temperature | -15°C to +55°C, +70°C requires Air Ducting or Fan Kit (air flow) |
| Weight | 11.5LBS |
| Dimensions (H x W x D) | 3.5”H x 9.0”W x 18.0”D |
