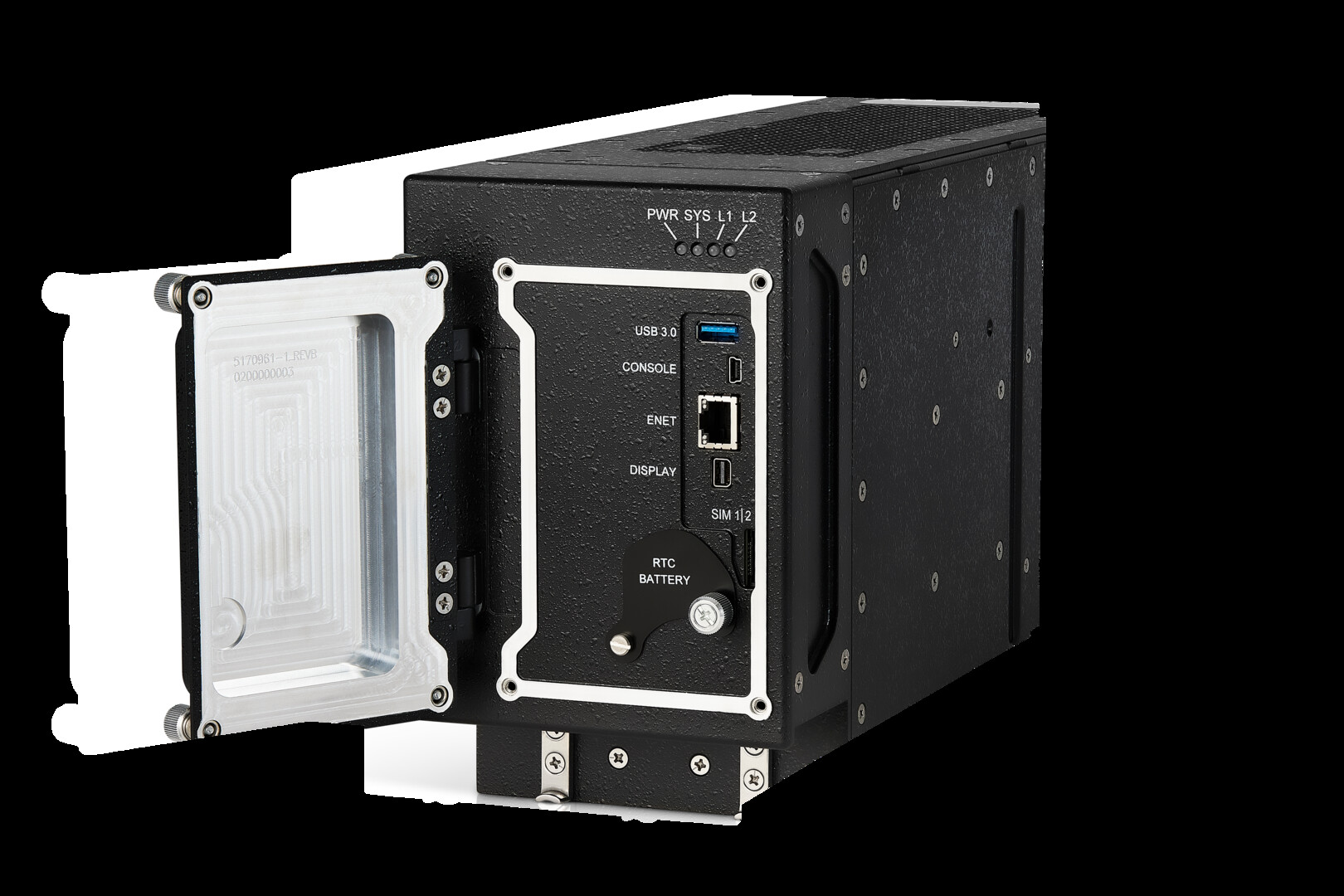

Ace Flight™ 4783 | TAURUS HB & JUPITER 3
ARINC 791/792 Dual Modem Manager (MODMAN)
Specifications
Coming soon- Integrated dual Satellite Modem Cards (TAURUS HB + JUPITER 3) with RF switch
- High performance Intel® Xeon® 6-Core processor, 64GB DRAM
- L2 Managed Ethernet Switch
- ARINC 791/792 compliant
- DO-160G qualified and OEM Line-fit ready
Kontron’s Ace Flight™ 4783 MODMAN has been designed in accordance with ARINC 791/792 and supports two different SATCOM modems without any compromise or feature limitations. This version of Ace Flight™ 4783 provides a dual modem configuration using Hughes JUPITER 3 and Gilat Taurus HB. The MODMAN also includes an Intel® Xeon® 6-Core processor, L2+ Managed Ethernet Switch, cellular modem, ARINC 429 and fixed storage.
The dual integrated satellite modem approach eliminates the need for a second MODMAN to be installed onto the aircraft thus removing weight, cost and complexity while still allowing the aircraft the ability to utilize different satellite operators by selecting the appropriate modem during flight.
This product line has been rigorously tested and DO-160G qualified for environmental conditions specific to airborne applications.
Features
| Form Factor | 4MCU per ARINC 600, air flow-through |
| Processor | Intel® Xeon® E-2276ML (6x 2.0GHz), CM246 PCH, GT2 |
| DRAM | 64GB DDR4, ECC |
| Security | TPM 2.0 |
| Connectivity | Dual SATCOM Modems: Gilat TAURUS HB and Hughes JUPITER 3 |
| Operating System | Ubuntu 20.4 LTS, 64-bit Contact Factory for Optional Software and other OS support SGOS Middleware |
| Ethernet | L2+ Managed Ethernet Switch 10x Ethernet Ports (8x GbE, 2x 100BT) on ARINC 600 Connector (Ports) |
| Wireless connectivity | 4G/LTE+ cellular modem for global access |
| Frontpanel | 2 Front accessible SIM slots ("2FF" / Mini-SIM) |
| Storage | 4TB of fixed storage (2x M.2 NVMe, 2TB each) |
| Bus type | 6x ARINC 429 Rx (fixed), 1x ARINC 429 (Tx/Rx) configurable |
| USB | 1x USB 2.0 (ARINC 600) 1x USB 3.0 Front I/O Maintenance |
| Video Output | 1x Mini-Display Port Front I/O Maintenance |
