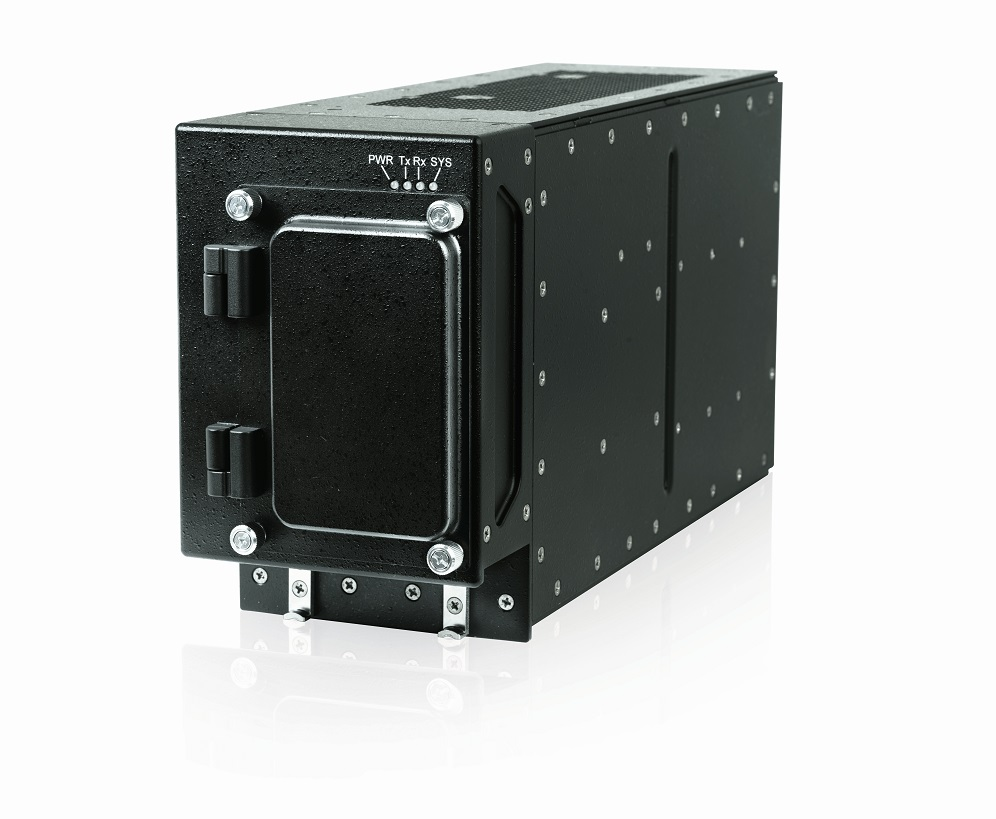

Ace Flight™ 4783 | iQ800 & JUPITER 2
ARINC 791/792 Dual Modem Manager (MODMAN)
Specifications
- Integrated dual Satellite Modem Cards with RF switch
- High performance Intel® Xeon® 6-Core processor, 64GB DRAM
- L2 Managed Ethernet Switch
- ARINC 791/792 compliant
- DO-160G qualified and OEM Line-fit ready
Ace Flight™ 4783 | iQ800 & JUPITER 2
Kontron’s Ace Flight™ 4783 MODMAN has been designed in accordance with ARINC 791/792 and has the unique ability to support two different SATCOM modems without any compromise or feature limitations. The MODMAN also includes an Intel® Xeon® 6-Core processor, L2+ Managed Ethernet Switch, cellular modem, ARINC 429 and fixed/removable storage options.
The dual integrated satellite modem approach eliminates the need for a second MODMAN to be installed onto the aircraft thus removing weight, cost and complexity while still allowing the aircraft the ability to utilize different satellite operators by selecting the appropriate modem during flight.
Kontron has designed the Ace Flight™ 4783 MODMAN product family to support different modem configurations (ordering options). This product line has been rigorously tested and DO-160G qualified for environmental conditions specific to airborne applications.
Features
| Form Factor | 4MCU per ARINC 600, air flow-through |
| Processor | Intel® Xeon® E-2276ML (6x 2.0GHz), CM246 PCH, GT2 |
| DRAM | 64GB DDR4, ECC, RAM |
| Security | TPM 2.0 |
| Connectivity | Dual SATCOM Modems: iDirect iQ800 and Hughes JUPITER 2 |
| Operating System | Ubuntu 20.4 LTS, 64-bit |
| Ethernet | L2+ Managed Ethernet Switch 10x Ethernet Ports (8x GbE, 2x 100BT) on ARINC 600 Connector (Ports) |
| Wireless connectivity | 4G/LTE+ cellular modem for global access |
| Frontpanel | 2 Front accessible SIM slots ("2FF" / Mini-SIM) |
| Storage | 4TB of fixed storage (2x M.2 NVMe, 2TB each) 1x Removable Solid State Drive (RSSD), capacity up to 8TB (Ordering Option) |
| Bus type | 6x ARINC 429 Rx (fixed), 1x ARINC 429 (Tx/Rx) configurable |
| USB | 1x USB 2.0 (ARINC 600) 1x USB 3.0 Front I/O Maintenance |
| Video Output | 1x Mini-Display Port Front I/O Maintenance |
Downloads
技术参数
AF4783 datasheet
[ ace-flight4783_iq800-jupiter_data-sheet_en.pdf, 212.76 KB, Dec.17.2024 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
软件
Ace Fleet Connect AF4783_iQ800_J2
[ ace-fleet-connect-datasheet.pdf, 285.53 KB, May.27.2024 ]
SGOS Middleware AF4783_iQ800_J2
[ sgos-datasheet.pdf, 678.12 KB, May.27.2024 ]
应用案例
ACE Flight 4783
When a customer needed a MODMAN to accommodate two satellite modems in a single 4MCU LRU with ARINC 791/792 standards, Kontron developed the high-performing ACE Flight 4783.
[ uc_onepager_avionics_modman-37-.pdf, 2.67 MB, Apr.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|

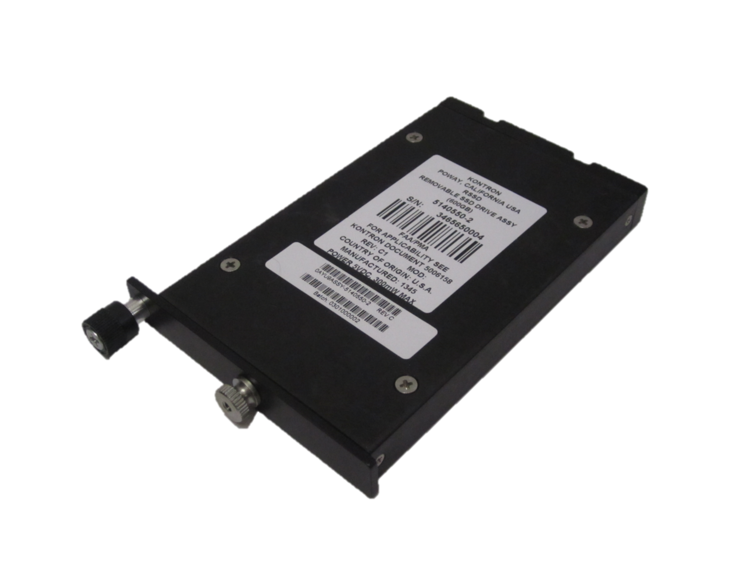

Ace Flight™ RSSD
5140550 |
|
ACE Flight™ RSSD | more |
