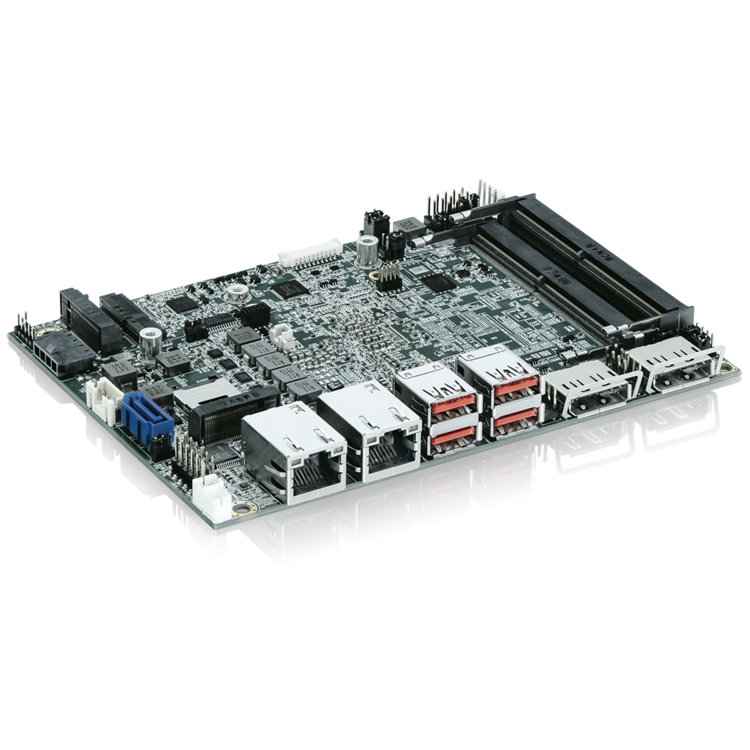

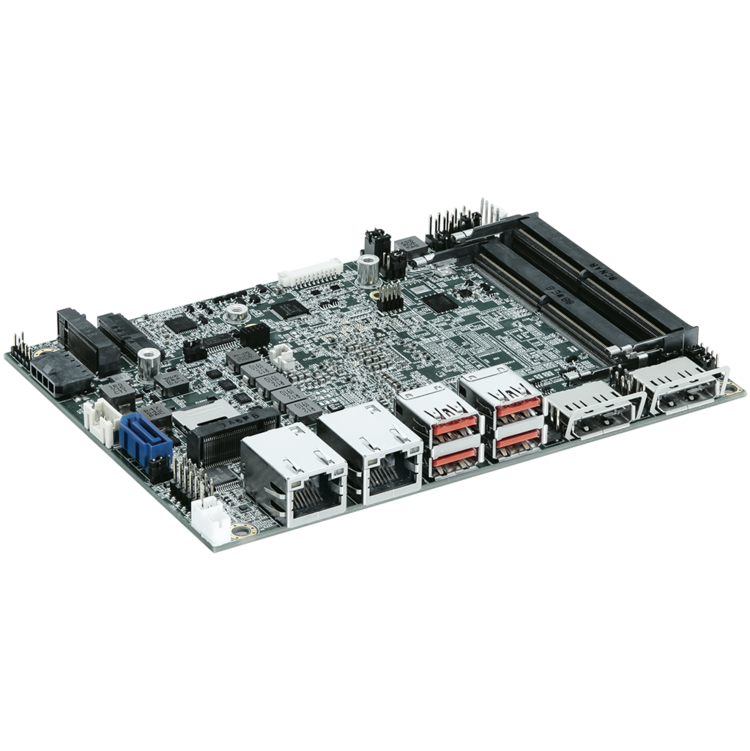

3.5"-SBC-WLU

3.5" Single Board Computer with 8th Generation Intel® Core™ U-Series Processors

Mouseover Zoom loading...

Specifications

1x LVDS, 2x DP++ for triple display support
2x GbE LAN for Ethernet
4x USB 3.2 Gen 2, 4x USB 2.0, 2x RS232/422/485 for USB & serial device connection
8x DIO for device / signal control
1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion

Download Datasheet

More Connected Platform for IoT Applications

3.5”-SBC-WLU is a 3.5" single board computer based on 8th Generation Intel® Core™ U-Series processors. Besides computing / graphics performance enhancement, the board supports many new-generation interfaces, including (1) faster DDR4 memory sockets; (2) HDMI- / DVI-output-supported DP++ ports; (3) high-speed SATA 3.0 drive socket; and (4) highly-integrated M.2 expansion slots.

Most importantly, 3.5”-SBC-WLU supports Intel® Wireless-AC via new Intel's new CNVi interface integrated in the M.2 Key E socket, which can deliver up to 12x faster Wi-Fi speeds depending on the model that is installed when compared to legacy Wi-Fi devices. It is a more connected embedded computing platform ideal for IoT wireless applications.

Features

Processor

Intel® Core™ i7-8665UE
(Quad Core, 8M Cache, 1.7 / 4.4 GHz, FCBGA1528, 15 W TDP)
Intel® Core™ i5-8365UE
(Quad Core, 6M Cache, 1.6 / 4.1 GHz, FCBGA1528, 15 W TDP)
Intel® Core™ i3-8145UE
(Dual Core, 4M Cache, 2.2 / 3.9 GHz, FCBGA1528, 15 W TDP)
Intel® Celeron® 4305UE
(Dual Core, 2M Cache, 2.00 GHz, FCBGA1528, 15 W TDP)

Main Memory

2x DDR4 2400 1.2 V SO-DIMM up to 64 GByte (Core™ i models)
2x DDR4 2133 1.2 V SO-DIMM up to 64 GByte (Celeron® models)

Graphics Controller

Intel® UHD Graphics 620 (Core™ i models)
Intel® UHD Graphics 610 (Celeron® models)

Display

1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz)
2x DP++ (4096 x 2304 @ 60 Hz, on rear)
Triple Display

Audio Controller

Realtek ALC888S

Audio

1x Speaker-out (Stereo, 3 W)
1x Line-in (by header)
1x Line-out (by header)
1x Mic-in (by header)

Ethernet

2x GbE LAN (RJ45 on rear, Intel® I219-LM, Intel® I210-AT)

USB	4x USB 3.2 Gen 2 (Type A on rear) 4x USB 2.0 (by header)

Serial

2x RS232/422/485 (by header)

SATA	1x SATA 3.0

Expansion

1x M.2 Key B (Type 2242, w/ PCIe x1 / USB 2.0 / USB 3.2 / UIM)
1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi)
1x M.2 Key M (Type 2280 / 2242, w/ PCIe x4 / SATA 3.0)
1x SIM Card Holder (Micro type)

Input Voltage

DC 12 V

Power connector

1x4-pin pitch 3.0 mm Wafer

BIOS	AMI uEFI BIOS w/ 256 Mb SPI Flash

Watchdog

Programmable WDT to generate system reset event

Cooling

1x Wafer for Smart Fan

Operating System

Windows 10, Linux

Form Factor

ECX (146 mm x 105 mm / 5.75" x 4.13")

Operating Temperature

0 °C ~ 60 °C / 32 °F ~ 140 °F

Humidity

0 % ~ 95 %

Compliance

CE Class B, FCC Class B

Downloads

技术参数

3.5"-SBC-WLU Datasheet
Revision 20240902, September 2, 2024
[ kontron-3d5-sbc-wlu-datasheet-20240902.pdf, 3.12 MB, Sep.02.2024 ]

参考手册

3.5"-SBC-WLU User Guide
Revision 2.1, September 2, 2024
[ kontron-3d5-sbc-wlu-user-guide-rev-2d1-2024-09-02.pdf, 1.77 MB, Sep.02.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

快速查询手册

3.5"-SBC-WLU Quick Installation Guide
Revision 2, February 26, 2020
[ kontron-3d5-sbc-wlu-qig-20200226.pdf, 456.14 KB, Feb.26.2020 ]

Tech Spec Sheet

Tech Specs SBC 候选发布版本(RC)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

3.5"-SBC-WLU-0-i5-8365UE 43015-0000-16-4	$3.5\$	Intel® Core™ i5-8365UE
3.5"-SBC-WLU-1-i3-8145UE 43015-0000-22-2	$3.5\$	Intel® Core™ i3-8145UE
3.5"-SBC-WLU-2-i7-8665UE 43015-0000-17-4	$3.5\$	Intel® Core™ i7-8665UE
3.5"-SBC-WLU-3-4305UE 43015-0000-20-2	$3.5\$	Intel® Celeron® 4305UE

Accessories

Heatsink - Cooling Solution 1067-5535		Heatsink with Fan, 15W tdp
DC Jack Cable 1064-2433		2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm Part No.: 0C5020000004220L
COM_Port Cable 1064-2427		D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable 1065-3137		D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2 Ports USB 2.0 Cable 1064-2429		USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm
SATA Cable with Lock 1064-2431		SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
SATA Power Cable 1064-2430		SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
Audio Cable 1064-2432		2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm
