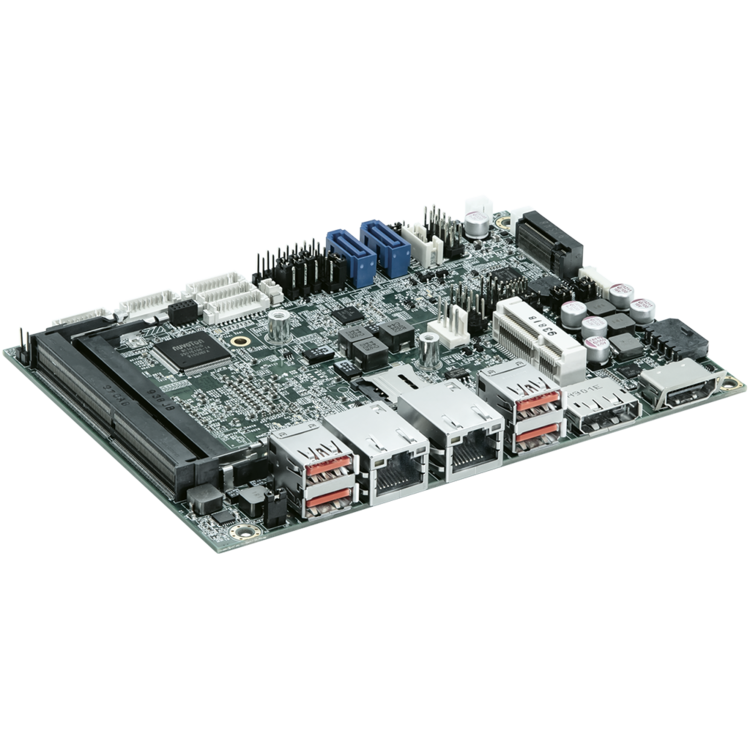

3.5"-SBC-VR1000
3.5" Single Board Computer with AMD Ryzen™ V1000 / R1000 Series Processors
Mouseover Zoom loading...
Specifications
- 1x LVDS, 1x DP, 1x HDMI 2.0 for triple display support
- 2x GbE LAN for Ethernet
- Up to 4x USB 3.2 Gen 2, up to 6x USB 2.0, 2x RS232/422/485, 2x RS232 for peripherals
- 8x DIO for device / signal control
- 2x SATA 3.0, 1x mPCIe, 1x M.2 Key M for storage & expansion
Ideal for Graphics Intensive Applications
Kontron 3.5"-SBC-VR1000 is a 3.5" single board computer (SBC) powered by AMD Ryzen™ V1000 / R1000 Series processors, which features excellent 4K playback under a fanless and low-power embedded design. It is a power efficient option for a wide range of compute-intensive graphics applications, such as digital signage, digital casino gaming, industrial control & automation, medical imaging, networking and thin clients.
In addition, 3.5"-SBC-VR1000 supports TPM 2.0 security for data protection and M.2 NVMe SSD which features much lower latency, compact form factor and high reliability. It can help integrators to easily develop a securer and smaller edge computing device.
Features
| Processor | AMD Ryzen™ V1605B (Quad Core, 4M Cache, 2.00 / 3.60 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ V1202B (Dual Core, 4M Cache, 2.30 / 3.20 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1606G (Dual Core, 4M Cache, 2.60 / 3.50 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1505G (Dual Core, 4M Cache, 2.40 / 3.30 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1305G (Dual Core, 4M Cache, 1.50 / 2.80 GHz, FP5, 8 W → 10 W TDP) |
| Main Memory | 2x DDR4 2400 SO-DIMM up to 32 GByte |
| Graphics | AMD Radeon™ Vega 8 (V1605B) AMD Radeon™ Vega 3 (V1202B, R1606G, R1505G & R1305G) |
| Display | 1x LVDS (18/24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x DP (4096 x 2160 @ 60 Hz, on rear) 1x HDMI 2.0 (3840 x 2160 @ 60 Hz, on rear) Triple Display Support |
| Audio Controller | Realtek ALC888S |
| Audio | 1x Speaker-out (Stereo, 3 W, by header) 1x Line-in (by header) 1x Line-out (by header) 1x Mic-in (by header) |
| Ethernet | 2x GbE LAN (RJ45 on rear, Intel® I210-AT, Intel® I211-AT) |
| USB | 4x USB 3.2 Gen 2 (Type A on rear, for V1000 models) 2x USB 3.2 Gen 2 (Type A on rear, for R1000 models) 4x USB 2.0 (by header, for V1000 models) 6x USB 2.0 (2x Type A on rear, 4x by header, for R1000 models) |
| Serial | 2x RS232/422/485 (by header) 2x RS232 (by header) |
| SATA | 2x SATA 3.0 |
| Expansion | 1x mPCIe (half size, mixed w/ PCIe x1 / USB 2.0) 1x M.2 Key M (Type 2280, mixed w/ PCIe x4, NVMe support) 1x Micro SIM Card Holder (connected to mPCIe) |
| Input Voltage | DC 12 V |
| Power connector | 1x4-pin pitch 3.0 mm Wafer |
| BIOS | AMI uEFI BIOS w/ 64 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages, Temperatures |
| Real Time Clock | Processor integrated RTC |
| Security | TPM 2.0 (Infineon SLB 9665) |
| Cooling | 1x Wafer for CPU Smart Fan |
| Operating System | Windows 10 |
| Form Factor | ECX (146 mm x 105 mm / 5.75" x 4.13") |
| Operation Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard) -20 °C ~ 70 °C / -4 °F ~ 158 °F (Extended) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B |
Downloads
技术参数
3.5"-SBC-VR1000 Datasheet
Revision 20231025, October 25, 2023
[ kontron-3d5-sbc-vr1000-datasheet-20231025.pdf, 2.36 MB, Oct.25.2023 ]
参考手册
3.5"-SBC-VR1000 User Guide
Revision 1.7, July 29, 2022
[ kontron-3d5-sbc-vr1000-user-guide-rev-1d7-2022-07-29.pdf, 1.88 MB, Apr.14.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
快速查询手册
3.5"-SBC-VR1000 Quick Installation Guide
Revision 20210125, January 25, 2021
[ kontron-3d5-sbc-vr1000-qig-20210125.pdf, 1.06 MB, Dec.06.2021 ]
Tech Spec Sheet
Tech Specs SBC
候选发布版本(RC)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
3.5"-SBC-VR1000-0-R1606G 43016-0000-26-2 |
|
AMD Ryzen™ R1606G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0 | |
|
3.5"-SBC-VR1000-1-R1505G 43016-0000-24-2 |
|
AMD Ryzen™ R1505G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0 | |
|
3.5"-SBC-VR1000-2-V1605B 43016-0000-20-4 |
|
AMD Ryzen™ V1605B + Radeon™ Vega 8, 4x USB 3.2 Gen 2, 4x USB 2.0 | |
|
3.5"-SBC-VR1000-3-V1202B 43016-0000-23-2 |
|
AMD Ryzen™ V1202B + Radeon™ Vega 3, 4x USB 3.2 Gen 2, 4x USB 2.0 | |
|
3.5"-SBC-VR1000-8-R1305G 43016-0000-15-2 |
AMD Ryzen™ R1305G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0 |
Accessories
|
DC Jack Cable 1064-2433 |
|
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
Part No.: 0C5020000004220L |
|
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2 Ports USB 2.0 Cable 1064-2429 |
|
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|
Audio Cable 1064-2432 |
|
2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm | |
|
SATA Power Cable 1064-2430 |
|
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm | |
|

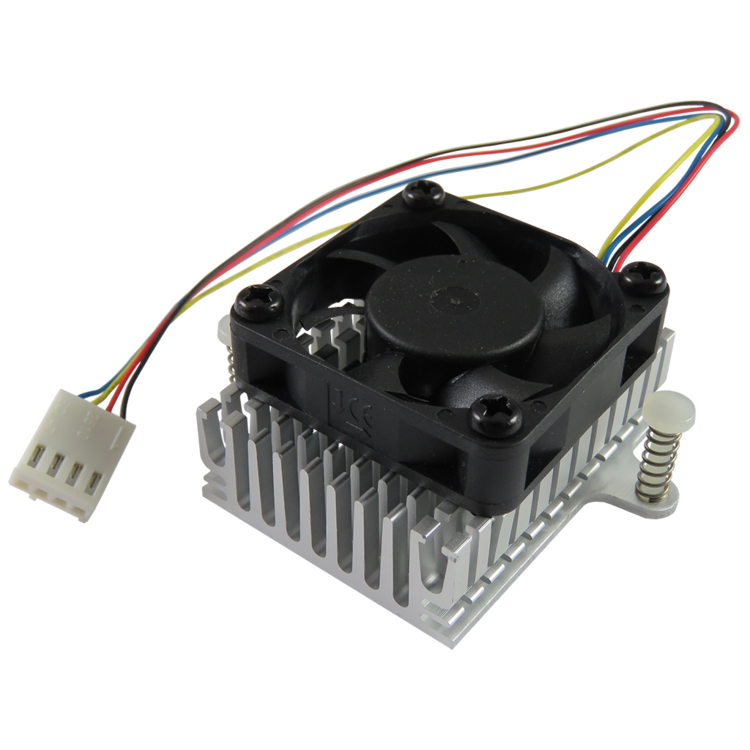

Active Cooler for 3.5"-SBC-VR1000 1067-5533/01 |
|
CPU Cooler w/ 22 x 14 x 0.15 mm Thermal Pad + 5800 RPM 7.0 CFM Fan |
