3.5"-SBC-TGL New
3.5" Single Board Computer with 11th Gen Intel® Core™ U-Series & Celeron® 6000 Series Processors
Mouseover Zoom loading...
Specifications
- Native AI inferencing capabilities
- 8K UHD video output support
- Time Coordinated Computing / Time Sensitive Networking for real-time control
- Various expansion capabilities: next-gen M.2 sockets & board-to-board connector
- Hardware-based protection against malware and sophisticated cyberattacks
Dramatic Leap in Graphics Performance
Ideal for AI / Deep Learning Applications
3.5"-SBC-TGL is a 3.5″ single board computer powered by 11th Generation Intel® Core™ U-Series and Celeron® 6000 Series processors (codenamed Tiger Lake UP3) integrated with Intel’s next-generation Iris® Xe Graphics. It delivers massive improvements in processing, graphics and AI performance, ideal for AI, deep learning and similar applications that demand high-speed processing, computer vision and low-latency deterministic computing.
8K Ultra HD Video Outputs
The board supports up to two 8K video streams at 60 fps. Via the extended B2B connector, it can support four channels of DP signal outputs to drive four independent displays running 4K video at 60 fps and thus it can be integrated into a 2 x 2 or 4 x 1 video wall system.
Optimized Bandwidth Utilization
In addition to a GbE LAN port, the 3.5"-SBC-TGL offers another 2.5 GbE LAN port to satisfy the growing bandwidth-intensive needs, enabling faster networking, smoother multimedia playback, web-/cloud-based services and daily usage.
Flexibility In System Design & Performance
In addition, the board supports configurable TDP done via BIOS settings, which provides flexibility to integrators to design a system according to the cooling techniques they use and the application scenarios they target.
Harsh Environment Applications Possible
The 3.5"-SBC-TGL offers variants with industrial-grade operating temperature range from -40 °C to 85 °C, allowing integrators to develop a robust system installed in an extreme-temperature environment.
Features
| Processor | Intel® Core™ i7-1185G7E / Intel® Core™ i7-1185GRE (Quad Core, 12M Cache, 1.8 / 4.4 GHz, FCBGA1449, 12 W ← 15 W → 28 W TDP) Intel® Core™ i5-1145G7E / Intel® Core™ i5-1145GRE (Quad Core, 8M Cache, 1.5 / 4.1 GHz, FCBGA1449, 12 W ← 15 W → 28 W TDP) Intel® Core™ i3-1115G4E (Dual Core, 6M Cache, 2.2 / 3.9 GHz, FCBGA1449, 12 W ← 15 W → 28 W TDP) Intel® Celeron® 6305E (Dual Core, 4M Cache, 1.8 GHz, FCBGA1449, 15 W TDP) |
| Main Memory | 2x DDR4 3200 SO-DIMM up to 64 GByte |
| Graphics Controller | Intel® Iris® Xe Graphics (Core™ i7 / i5) Intel® UHD Graphics (Core™ i3 / Celeron®) |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP (7680 x 4320 @ 60 Hz, on rear)* (* 2x 8K support for Core™ i7 / i5, 1x 8K support for Core™ i3 / Celeron®) Quadruple Display (more display I/Os supported via extended B2B connector) |
| Audio Controller | TSI 92HD91B |
| Audio | 2x Speaker-out (Right & Left, 3 W) 1x Line-in (by header) 1x Line-out (by header) 1x Mic-in (by header) |
| Ethernet | 1x 2.5 GbE LAN (RJ45 on rear, Intel® I226-LM/IT) 1x GbE LAN (RJ45 on rear, Intel® I210-AT/IT) |
| USB | 4x USB 3.2 Gen 2 (Type A on rear) 4x USB 2.0 (by header) |
| Serial | 2x RS232/422/485 (by header) |
| Available I/Os | 8x DIO (by header) |
| SATA | 1x SATA 3.0 |
| Expansion | 1x M.2 Key B (Type 2242 / 3042 / 2280, w/ PCIe x1 / USB 2.0 / SATA 3.0) 1x M.2 Key M (Type 2280, w/ PCIe x4) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0, Intel® CNVi support) 1x SIM Card Holder (Micro type, connected to M.2 Key B) |
| Special Features | 1x Extended B2B Connector, supporting - 2x DDI (1x eDP / DP support, 1x DP support) - 1x PCIe x2 - 1x PCIe x1 - 1x SM Bus - 1x I2C - 1x UART - 1x GSPI |
| Input Voltage | DC 12 V |
| Power connector | 1x4-pin pitch 3.0 mm Wafer |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages Temperatures |
| Real Time Clock | Processor integrated RTC |
| Management | vPro support (Core™ i7 / i5) |
| Security | TPM 2.0 Support (Infineon SLB 9670) |
| Cooling | 1x Wafer for Smart Fan |
| Operating System | Windows 10 Linux |
| Mechanical Dimensions | ECX (146 mm x 105 mm / 5.75" x 4.13") |
| Operating Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard) -40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B FCC Class B |
Downloads
Use Cases
技术参数
3.5"-SBC-TGL Datasheet
Revision 20240820, August 20, 2024
[ 3d5-sbc-tgl-datasheet-20240820.pdf, 1.12 MB, Aug.20.2024 ]
参考手册
3.5"-SBC-TGL User Guide
Revision 2.3, December 18, 2024
[ kontron-3d5-sbc-tgl-user-guide-rev-2d3-2024-12-18.pdf, 1.98 MB, Dec.18.2024 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
快速查询手册
3.5"-SBC-TGL Quick Installation Guide
Revision 1, May 19, 2022
[ kontron-3d5-sbc-tgl-qig-20220519.pdf, 869.46 KB, May.19.2022 ]
Tech Spec Sheet
Tech Specs SBC
候选发布版本(RC)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|

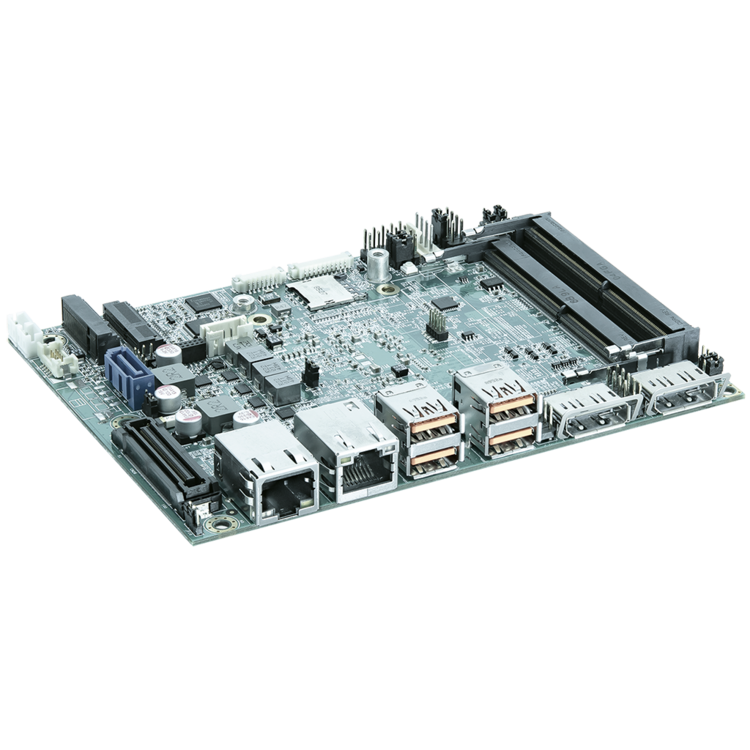

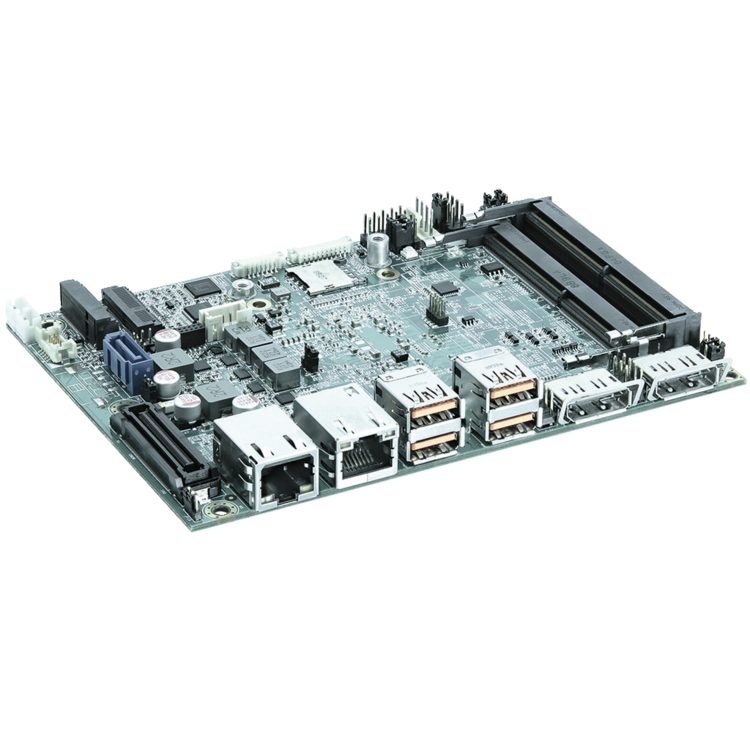

3.5”-SBC-TGL-0-i5-1145G7E |
|
Intel® Core™ i5-1145G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C. | |
|
3.5”-SBC-TGL-1-i3-1115G4E |
|
Intel® Core™ i3-1115G4E, B2B connector, vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5”-SBC-TGL-2-i7-1185G7E |
|
Intel® Core™ i7-1185G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5”-SBC-TGL-3-6305E 43017-0000-18-2 |
|
Intel® Celeron® 6305E, B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5”-SBC-TGL-4-i7-1185GRE-XT |
|
Intel® Core™ i7-1185GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -20 °C ~ 70 °C | |
|
3.5”-SBC-TGL-5-i5-1145GRE-XT |
|
Intel® Core™ i5-1145GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -20 °C ~ 70 °C | |
|
3.5"-SBC-TGL-6-i5-1145G4E |
|
Intel® Core™ i5-1145G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5"-SBC-TGL-7-i3-1115G4E |
|
Intel® Core™ i3-1115G4E, without B2B connector, without vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5"-SBC-TGL-8-i7-1185G7E |
|
Intel® Core™ i7-1185G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C | |
|
3.5"-SBC-TGL-9-6305E |
|
Intel® Celeron® 6305E, without B2B connector, withou vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C |
Accessories
|
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C | more |
|
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C | more |
|
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C | more |
|
Heatsink - Cooling Solution 1067-5535 |
|
Heatsink with Fan, 15W tdp | |
|
DC Jack Cable 1064-2433 |
|
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
Part No.: 0C5020000004220L |
|
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2-Port USB 2.0 Cable 1069-7893 |
|
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm | |
|
SATA Power Cable 1064-2430 |
|
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|
Audio Cable w/ 3x Phone Jack 1070-1245 |
|
HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm | |
|
AC to DC Power Adapter (12 V) 1069-3055 |
|
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W | |
|

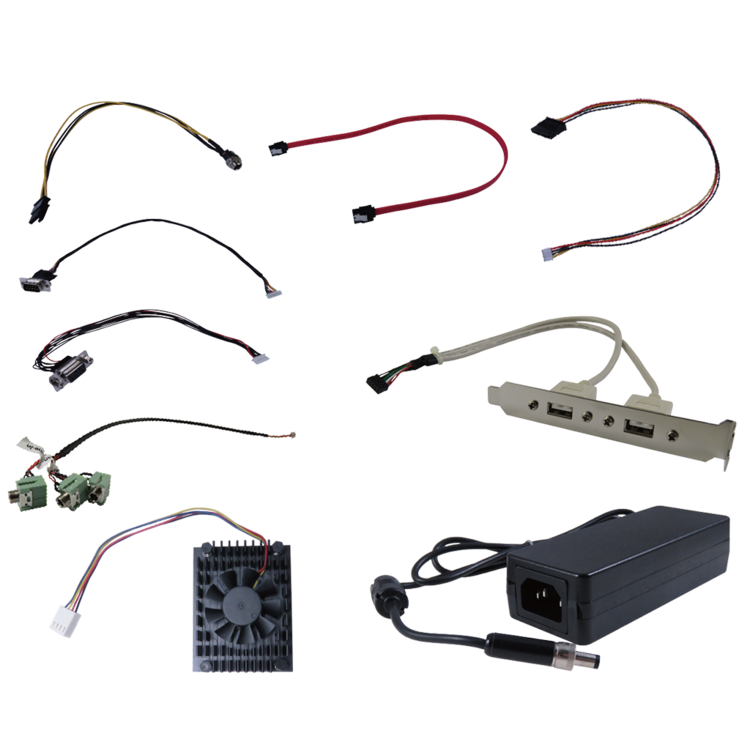

Starter Kits for 3.5"-SBC-TGL 1069-6976 |
|
1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Cooler |
