3.5"-SBC-APL V2.0

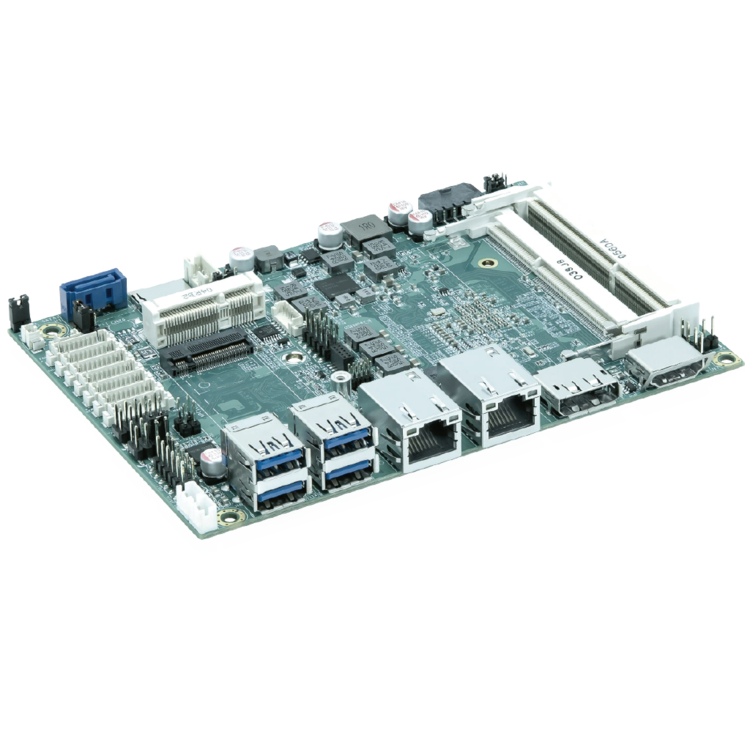

3.5” Single Board Computer with Intel® Atom® E3900 Series & Pentium® / Celeron® N- / J-Series Processors
Mouseover Zoom loading...
Specifications
- 1x LVDS, 1x DP, 1x HDMI for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, up to 3x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO for peripherals
- 1x SATA 3.0, 1x Micro-SD Cage for storage
- 1x mPCIe, 1x M.2 Key B for expansion
Extended / Extreme Temperature Support
3.5"-SBC-APL V2.0 is a 3.5" single board computer (SBC), equipped with Intel® Atom® E3900 Series & Pentium® / Celeron® N- / J-Series.
Higher performance and power efficiency
The 3.5"-SBC-APL V2.0 provides up to a 30% increase in processing and graphics performance and a 15% increase in power efficiency over models with previous-generation Intel® processors.
Multi-functional integration
In addition, the 3.5"-SBC-APL V2.0 supports a highly-integrated M.2 expansion socket for USB, WWAN (3G, 4G), satellite navigation (GPS) and SSDs enabling developers to build more compact or thinner embedded devices.
Extreme temperature applications
Extended / extreme temperature models are also available allowing for operation under extreme high, low or radically fluctuating temperatures, which is common in industrial environments.
Features
| Processor | Intel® Atom® x7-E3950 (Quad Core, 2M Cache, 1.60 / 2.00 GHz, FCBGA1296, 12 W TDP) Intel® Atom® x5-E3940 (Quad Core, 2M Cache, 1.60 / 1.80 GHz, FCBGA1296, 9.5 W TDP) Intel® Atom® x5-E3930 (Dual Core, 2M Cache, 1.30 / 1.80 GHz, FCBGA1296, 6.5 W TDP) Intel® Pentium® N4200 (Quad Core, 2M Cache, 1.10 / 2.50 GHz, FCBGA1296, 6 W TDP) Intel® Celeron® J3455 (Quad Core, 2M Cache, 1.50 / 2.30 GHz, FCBGA1296, 10 W TDP) Intel® Celeron® N3350 (Dual Core, 2M Cache, 1.10 / 2.40 GHz, FCBGA1296, 6 W TDP) |
| Main Memory | 2x DDR3L 1867 1.35 V SO-DIMM |
| Graphics Controller | Intel® HD Graphics 505 (for mdoels w/ Atom® x7, Pentium®) Intel® HD Graphics 500 (for models w/ Atom® x5, Celeron®) |
| Display | 1x LVDS (18/24-bit, 1/2-ch, 1920 x 1200 @ 60 Hz) 1x DP 1.2 (4096 x 2160 @ 60 Hz, on rear) 1x HDMI 1.4 (3840 x 2160 @ 30 Hz, on rear) Triple display support |
| Audio Controller | Realtek ALC888S |
| Audio | 1x Speaker-out (Stereo, 3 W, by header) 1x Line-in (by header, extreme temperature model excluded) 1x Line-out (by header, extreme temperature model excluded) 1x Mic-in (by header, extreme temperature model excluded) |
| Ethernet | 2x GbE LAN (RJ45 on rear, Intel® I210-AT) |
| USB | 4x USB 3.2 Gen 1 (Type A on rear) 2x USB 2.0 (by header, default) 3x USB 2.0 (by header, only for 3.5”-SBC-APL-6-E3950 V 2.0) |
| Serial | 2x RS232/422/485 (by wafer, auto fl ow control function for RS485) 4x RS232 (by wafer) |
| Available I/Os | 8x DIO (by header) |
| SATA | 1x SATA3.0 |
| Expansion | 1x Micro SD Cage (on front) 1x mPCIe (full size) 1x M.2 Key B (2242, w/ USB 2.0 / SATA / PCIe x1, default) 1x M.2 Key B (2242, w/ SATA / PCIe x1, only for 3.5”-SBC-APL-6-E3950 V 2.0) 1x SIM Card Cage (by wafer, switchable between mPCIe and M.2) |
| Input Voltage | DC 12 V |
| Power connector | 1x 4-pin Wafer (Straight & Right Angle dual-footprint) |
| BIOS | AMI uEFI BIOS w/ 128 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| Real Time Clock | Processor integrated RTC |
| Cooling | 1x Wafer for System Smart Fan |
| Operating System | Windows 10, Linux |
| Mechanical Dimensions | SBC (146 mm x 105 mm / 5.75” x 4.13”) |
| Operation Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard) -20 °C ~ 70 °C / -4 °F ~ 158 °F (Extended) -40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B |
Downloads
技术参数
3.5-SBC-APL V2.0 Datasheet
Revision 20230815, August 15, 2023
[ kontron-3d5-sbc-apl-v2d0-datasheet-20230815.pdf, 2.92 MB, Aug.15.2023 ]
参考手册
3.5-SBC-APL V2.0 User Guide
Revision 2.7, November 9, 2023
[ kontron-3d5-sbc-apl-v2d0-user-guide-rev-2d7-2023-11-09.pdf, 1.94 MB, Nov.10.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
应用案例
3.5"-SBC-APL V2.0 Creates HMI for Picosecond Laser Tattoo Removal Machine
Revision 20200703, July 3, 2020
[ application-story-picosecond-laser-20200703.pdf, 2.89 MB, Sep.22.2020 ]
Tech Spec Sheet
Tech Specs SBC
候选发布版本(RC)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Variants
|
3.5"-SBC-APL-0-E3950 V2.0 43012-0000-20-4 |
|
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-1-E3940 V2.0 43012-0000-18-4 |
|
Intel® Atom® x7-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-3-N4200 V2.0 43012-0000-25-4 |
|
Intel® Pentium® N4200, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-4-N3350 V2.0 43012-0000-23-2 |
|
Intel® Celeron® N3350, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-6-E3950 V2.0 |
Intel® Atom® x7-E3950, 3x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C | ||
|
3.5"-SBC-APL-A-E3930 V2.0 43012-0000-18-2 |
|
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-K-J3455 V2.0 43012-0000-15-4 |
|
Intel® Celeron® J3455, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C | |
|
3.5"-SBC-APL-0-E3950-ET V2.0 |
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: -20 °C ~ 70 °C | ||
|
3.5"-SBC-APL-H-E3950-XT V2.0 43012-0000-20-4ET |
|
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C | |
|
3.5"-SBC-APL-I-E3940-XT V2.0 43012-0000-18-4ET |
|
Intel® Atom® x5-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C | |
|
3.5"-SBC-APL-J-E3930-XT V2.0 43012-0000-18-2ET |
|
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C |
Accessories
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2 Ports USB 2.0 Cable 1064-2429 |
|
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|
SIM Card Holder Kit 1064-2434 |
|
with SIM card holder x1, cable x1,and screws x4 | |
|
Audio Cable 1064-2432 |
|
2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm | |
|
DC Jack Cable 1064-2433 |
|
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
Part No.: 0C5020000004220L |
|
|

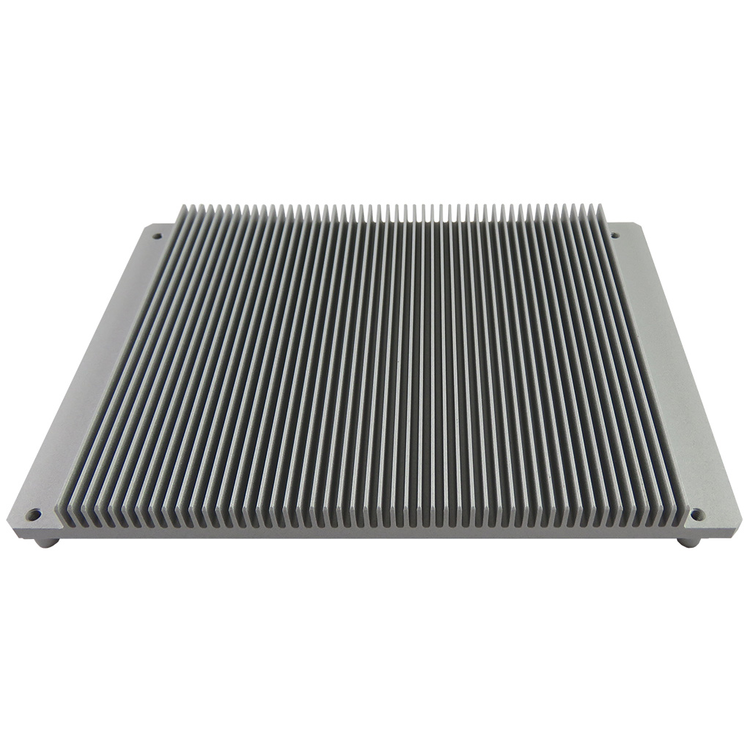

Heatsink - Cooling Solution E-Series 1067-5540 |
|
Heatsink E-Series Variant | |
|

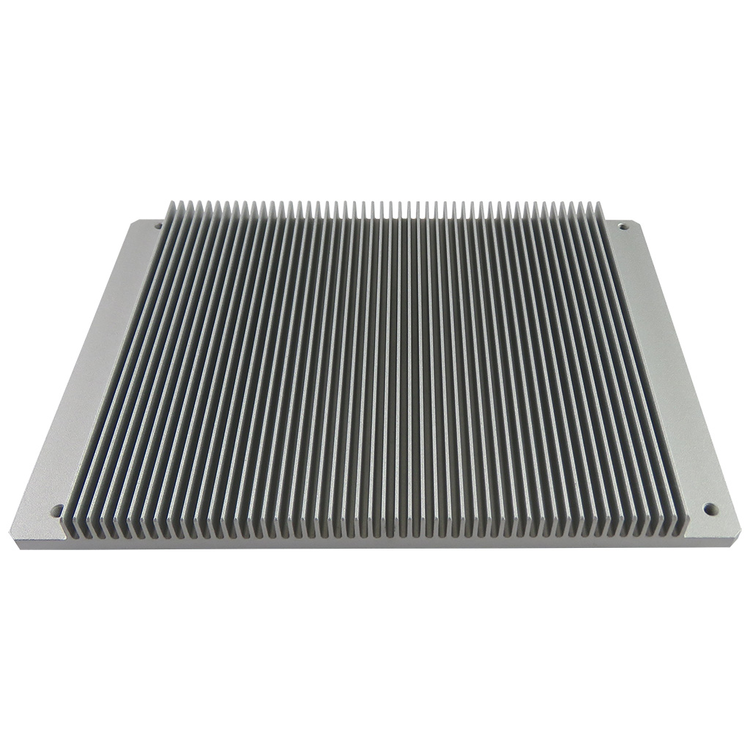

Heatsink - Cooling Solution N-Series 1067-5537 |
|
Heatsink N-Series Variant | |
|
SATA Power Cable 1064-2430 |
|
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm |
